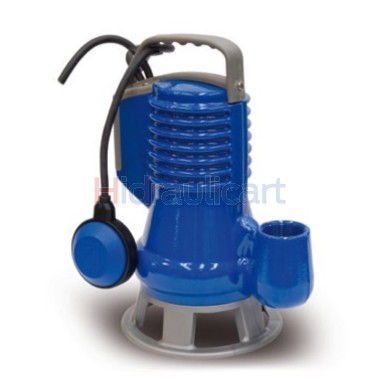

Sewage Pump Zenit Draga Bluepro Vortex 2"

VER PREÇO / COMPRAR

Esta eletrobomba destina-se a uma utilização tanto doméstica, como profissional



Zenit
Product Name Price Delivery Qty
Sewage Pump Zenit Draga DG Bluepro 150/2/G50V, 2", 230V
Cód.ZENB42010045
€910.00
Sewage Pump Zenit Draga DG Bluepro 150/2/G50V, 2", 400V
Cód.ZENB42010050
€910.00
Sewage Pump Zenit Draga DG Bluepro 200/2/G50V, 2", 230V
Cód.ZENB42010060
€1,075.00
Sewage Pump Zenit Draga DG Bluepro 200/2/G50V, 2", 400V
Cód.ZENB42010070
€1,077.00

Product Description

Aplicações:
Zenit Sewage Pump can be used in situations with slightly charged biological and sewage liquids. Suitable for heavy use in the presence of charged biological liquids, sewage, meteoric and infiltration waters. This electric pump is intended for both domestic and professional use. Electromechanical set in cast iron EN-GJL-250, prepared for submerged operation, supplied with 2 opposed mechanical seals in silicon carbide in an oil chamber, V-ring in contact straight with the liquid.

Funcionamento:
Fluid: Drainage water from sewage and charged water.
Maximum temperature of the liquid: 40ºC
Solid passage: 50 mm
Maximum number of starts per hour: 20

Caracterísitcas Construtivas
Pump body: Gray cast iron - EN-GJL 250
Pump base: Gray cast iron - EN-GJL 250
Turbine: Gray cast iron - EN-GJL 250
Motor Shaft: Stainless steel - AISI 420
Float: Polypropylene (when applicable, 230V model w/ float)
Mechanical Seal: Two silicon carbide (SiC) mechanical seals
Power Cable: 5 m neoprene cable

Motor Eléctrico
Submersible motors with IP68 degree of protection and class F insulation.
Single phase 230 V - 50 Hz with permanent capacitor. For continuous operation, the electric pump must work completely submerged.
Three-phase 400 V - 50 Hz direct start.

Ligações
Ø Output 2“

Note: Pro (professional), includes double seal in silicon carbide in oil chamber and automatic air bleeder.

Zenit BluePRO Catalog

Documents

Para mais informação, consulte Catálogo Zenit BluePRO
