ESPA Acuaria 57 Submersible Water Pump up to 21 m3/h

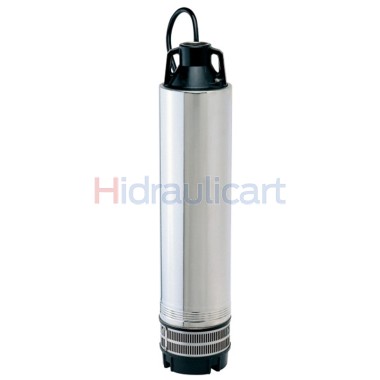

ESPA Acuaria 57 Submersible Water Pump up to 21 m3/h

The Acuaria 57 submersible pump is an ideal choice for supplying water in a variety of applications including domestic, industrial, agricultural and gardening use. With its pump body, filter and impellers in AISI 304, suction and impulsion in die-cast, and diffusers in technopolymer, this pump offers reliable and long-lasting performance.

Product Name	Price	Delivery	Qty
Electropump Espa Acuaria 57-4, 400V Cód.ESP290060	€1,221.00 €732.60

Product Description

Applications:
Submersible electric pumps for pumping clean water without suspended solids. Designed for domestic use, sprinkler irrigation and pressure groups.

Operation:
Fluid: Clean water free of solids
Maximum liquid temperature: 35 ºC
Maximum immersion depth: 20 m
Solids passage: 1.5 mm
Maximum number of starts per hour: 25

Constructive Features
Pump body: Stainless Steel
Pump Base: Cast Iron
Turbine: Technopolymer
Mechanical Seal: Double Graphite/Ceramic
External Float: With built-in switch (Float models)
Power Cable: 15 m

Electric Motor
Submersible motors with IP68 degree of protection and class F insulation. Water cooled

Connections
Ø Output: 11/2“

ACUARIA 57
Model	I [A]			P1	P2		Q
	1~230V	3~230V	3~400V	[kW]	[kW]	[HP]	l/min 0	50	100	150	200	250	300	350
							^m3 /h0	3.0	6.0	9.0	12.0	15.0	18.0	21.0
							H [m]
ACUARIA 57 4	-	-	5.4	3.0	2.20	3.00		53	48	42	38	32	23	12
