| Product Name | Price | Delivery | Qty |
|---|---|---|---|
| 2E55M, 0.75Cv, 230V, Float Cód.JOV42005006 |
€474.00 €348.20 |
||
| 2E75M, 1.00Cv, 230V, Float Cód.JOV42005011 |
€502.00 €368.80 |
||
| 2E110M, 1.50Cv, 230V, Float Cód.JOV42005016 |
€547.00 €401.80 |
||
| 4E75M, 1.00Cv, 230V, Float Cód.JOV42015011 |
€495.00 €363.60 |
||
| 4E110M, 1.50Cv, 230V, Float Cód.JOV42015016 |
€540.00 €396.70 |
||
| 4E150M, 2.00Cv, 230V, Float Cód.JOV42015021 |
€575.00 €422.40 |
||
| 8E110M, 1.50Cv, 230V, Float Cód.JOV42020540 |
€560.00 €411.40 |
||
| 8E150M, 2.00Cv, 230V, Float Cód.JOV42020560 |
€590.00 €433.40 |
||
| 2E75T, 1.00hp, 400v Cód.JOV42010010 |
€447.00 €328.40 |
||
| 2E110T, 1.50hp, 400v Cód.JOV42010015 |
€487.00 €357.80 |
||
| 4E75T, 1.00hp, 400v Cód.JOV42020010 |
€441.00 €324.00 |
||
| 4E110T, 1.50hp, 400v Cód.JOV42020015 |
€480.00 €352.60 |
||
| 4E150T, 2.00hp, 400v Cód.JOV42020020 |
€511.00 €375.40 |
||
| 8E110T, 1.50hp, 400v Cód.JOV42020620 |
€510.00 €374.60 |
||
| 8E150T, 2.00hp, 400v Cód.JOV42020630 |
€537.00 €394.50 |
||
| 8E220T, 3.00hp, 400v Cód.JOV42020640 |
€636.00 €507.80 |

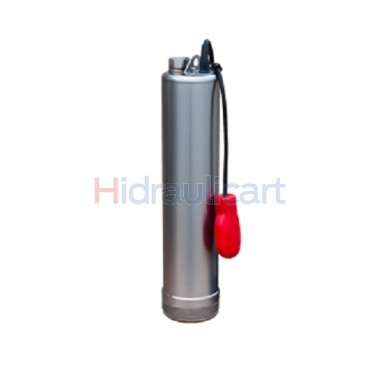

Product Description
- Easy to Install. Supplied with electric cable and capacitor.
- Environmentally friendly, does not contain oil. Silent.
- Vertical or horizontal installation.
- Fully anti-corrosion materials.
- Cooling by the pumped liquid.
- Radial Time Turbines. Turbines and diffusers in Noryl reinforced with fiberglass.
- Electric motor hermetically sealed and impregnated with protective resin.
- Water-lubricated graphite radial and axial bearings.
- Detachable power cable with 15 meters.
- 1" 1/4 output
- Pumps equipped with a Franklin engine
Ecologic Models: 2E55, 2E75, 2E110, 2E150, 4E55, 4E75, 4E110, 4E150, 8E75, 8E110, 8E150, 8E220
Specification
| Tipo de Bomba | Versão 50 Hz | Potência Nominal | Q | ||||||||||||||||
| l/min 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 120 | 150 | 180 | 210 | 250 | |||||
| [kW] | [HP] | m3/h 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 5.4 | 5.4 | 7.2 | 9 | 10.8 | 12.6 | 15 | |||
| H [m] | |||||||||||||||||||
|
2 e 55 M 2 E 55 T |
1~220/230 3~380/415 |
0.55 |
4.3 | 48 | 44 | 42 | 38 | 34 | 29 | 23 | 16 | - | - | - | - | - | - | - | |
| 1.6 | |||||||||||||||||||
|
2 E 75 M 2 E 75 T |
1~220/230 3~380/415 |
0.75 |
5.7 | 58 | 52 | 49 | 45 | 40 | 34 | 27 | 20 | - | - | - | - | - | - | - | |
| 2.1 | |||||||||||||||||||
|
2 E 110 M 2 E 110 T |
1~220/230 3~380/415 |
1.1 |
8.8 | 82 | 78 | 72 | 66 | 60 | 51 | 42 | 32 | - | - | - | - | - | - | - | |
| 3 | |||||||||||||||||||
|
4 E 55 M 4 E 55 T |
1~220/230 3~380/415 |
0.55 |
4.3 | 38 | - | 36 | 34 | 33 | 31 | 29 | 27 | 23 | 22 | 12 | - | - | - | - | |
| 1.6 | |||||||||||||||||||
|
4 E 75 M 4 E 75 T |
1~220/230 3~380/415 |
0.75 |
5.7 | 50 | - | 48 | 46 | 44 | 43 | 40 | 37 | 34 | 31 | 16 | - | - | - | - | |
| 2.1 | |||||||||||||||||||
|
4 E 110 M 4 E 110 T |
1~220/230 3~380/415 |
1.1 |
8.6 | 73 | - | 70 | 67 | 65 | 62 | 59 | 55 | 51 | 46 | 22 | - | - | - | - | |
| 3 | |||||||||||||||||||
|
4 E 150M 4 E 150 T |
1~220/230 3~380/415 |
1.1 |
10.6 | 96 | - | 88 | 84 | 81 | 77 | 73 | 68 | 63 | 57 | 30- | - | - | - | - | |
| 4 | |||||||||||||||||||
|
8 E 75 M 8 E 75 T |
1~220/230 3~380/415 |
1.5 |
5.7 | 25 | - | - | - | - | - | 23 | 22 | 21 | 20 | 18 | 15 | 13 | 10 | 7 | |
| 2.1 | |||||||||||||||||||
|
8 E 110 M 8 3 110 T |
1~220/230 3~380/415 |
0.75 |
8.6 | 38 | - | - | - | - | - | 36 | 35 | 34 | 33 | 31 | 27 | 24 | 18 | 11 | |
| 3 | |||||||||||||||||||
|
8 E 150 M 8 E 150 T |
1~220/230 3~380/415 |
1.5 |
10.6 | 50 | - | - | - | - | - | 47 | 46 | 45 | 44 | 42 | 237 | 33 | 25 | 15 | |
| 4 | |||||||||||||||||||
| 8 E 220 T | 3~380/415 | 2.2 | 5.9 | 74 | - | - | - | - | - | 68 | 66 | 64 | 63 | 58 | 52 | 45 | 36 | 23 | |
-
