| Product Name | Price | Delivery | Qty |
|---|---|---|---|
| Speed Variator LKD 4500N 008, 2.4 A Cód.18LKD4500N008 |
€561.50
|
||
| Speed Variator LKD 4500N 015, 4.7 A Cód.18LKD4500N015 |
€625.55
|
||
| Speed Variator LKD 4500N 022, 7.1 A Cód.18LKD4500N022 |
€689.65
|
Product Description

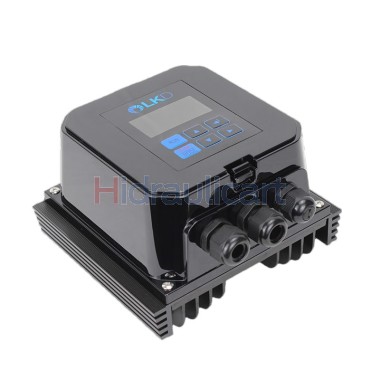

LKD-4500N frequency inverter for pumping systems
The control of surface electric pumps by the LKD-4500N variator guarantees:
Constant pressure regulation
Energy savings
Silent system
Electric pump and system protection
Easy installation, configuration and start-up
Full integration with the electric pump
This system constantly modulates the speed of the electric pump and uses only the energy essential for this purpose. In addition to reducing energy consumption, it increases the durability of the electric pump, as its mechanics are not always subjected to maximum speed and do not produce shock effects. ram since the starts and stops are progressive. This equipment stands out for its simplicity of programming and use, after connecting to the mains you only have to set the nominal pressure.
Features of the integrated system
Single-phase electrical supply 230V 50Hz
Three-phase output 3~230V 50Hz
Pressure sensor 0-10 bar included
Schuko type plug
Compact equipment
Wiring and factory configured
Ready to put into operation
Specification
| Technical Characteristics | |||
| Model | LKD 4500N 008 | LKD 4500N 015 | LKD 4500N 022 |
| Supply voltage: | ~1x230 Vac | ||
| Frequency: | 50/60Hz | ||
| Exit: | ~3x230 Vac | ||
| Maximum current intensity: | 2,4 A | 4,7 A | 7,1 A |
| Maximum peak current: | 150% 60" | ||
| Protection index: | IP55 | ||
| Adjustment range: | 0.5 - 10 Bar | ||
| Maximum ambient temperature: | 40ºC | ||
| Cooling system: | convection through the engine | ||
| Pressure transducer | 4 ~20 mA | ||
Documents
For more information, see the Technical Data Sheet
-
