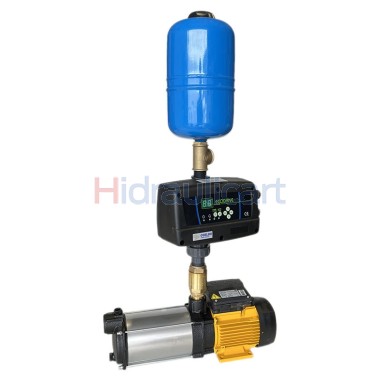

ESPA PRISMA ECODRIVE Smart Pressure Group up to 4.0 m3/h

ECODRIVE is a controller designed to operate at constant pressure in residential water supply systems. Consisting of ESPA pumps from the PRISMA series with stainless steel impellers, a speed variator and all essential accessories for the proper functioning of the system.

The ECODRIVE pressure controller is a compact device for controlling a single-phase pump. through an INVERTER system (frequency variator) that regulates the pump speed to maintain a constant and fixed optimum pressure in the installation, regardless of the water consumption being supplied. This variator is designed for plug-and-play management of a single-phase electric pump using a frequency inverter, without any configuration. Primarily intended for domestic use, it offers a convenient and efficient solution for domestic applications. It stands out for its ease of configuration and assembly, as once the device is connected to the electrical network, simply select the adjusted pressure.

Equipment Included
ESPA PRISMA series electric pump
Speed variator
Expansion Vessel
Retention valve
*The components of this kit are supplied in separate packaging.

Operation
Fluid: Clean waters and non-aggressive or viscous liquids, free of solid substances.
Maximum fluid temperature: 40 ºC
Maximum suction height: 7 m

Electropump Constructive Characteristics
Suction body: Cast iron with cataphoresis treatment
Drive body: Cast iron with cataphoresis treatment
Impellers: AISI 304 Stainless Steel
Diffusers: Technopolymer
Outer housing: AISI 304 stainless steel
Motor shaft: AISI 431 stainless steel
Mechanical seal: Ceramic/Graphite

Electric Motor
Two-pole induction type, closed and self-ventilated, suitable for continuous operation, with IPX5 degree of protection and class F insulation. Single-phase 230V - 50Hz with permanent capacitor.

Connections
Suction: 1"
Compression: 1"

For more information, see the Electrobomba Technical Data Sheet

For more information, see the Speed Variator Technical Sheet
