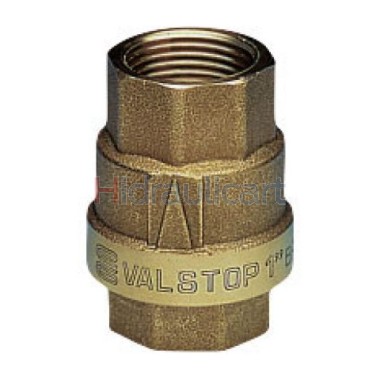

Check Valves VALSTOP H0151

Funcionamento

During normal fluid flow, the plug moves until the mushroom-shaped base contacts the identically shaped base on the plug guide, thus forming a biconical unit, the outer surfaces of which form together with the inner surface of the valve. , a venturi-shaped channel, having a constant cross section throughout its length. Thus, the flow at the valve inlet is equally distributed by the obturator tip, to enter the duct delimited by the shape of the external and central surfaces. This eliminates turbulence both at the inlet and outlet of the valve, thus reducing head loss to a minimum.

Características e Desempenho

Exceptional performance - featuring high Kv (volumetric water capacity in cubic meters per hour at a temperature of 15.5°C, which causes a pressure drop of 1 Bar)

Minimal pressure drop due to hydrodynamic flow design.
Full bore, high flow capacity.
Perfect sealing at low and high pressure, in a wide temperature range.
Very silent operation, considerably reduced water hammer.
Heavy and solid line, wear resistant and high durability materials.
Compact dimensions, superior performance and high quality.
Threaded connections ISO 228/1.
The valve can be installed in any position (horizontal, vertical, oblique).
Temperature limits: -20 °C to + 100 °C
Minimum opening pressure: Min 0.025 bar (25 cm water column).
Minimum sealing pressure: Min 0.05 bar (50 cm water column).
Max from PN 40 (1/4") to PN 10 (3").

Aplicações

For any type of hydraulic, pneumatic or heating system.
For hot and cold water, compressed air, oils. For non-aggressive liquids compatible with valve components, see chemical resistance table.
