| Product Name | Price | Delivery | Qty |
|---|---|---|---|
| Ball Flanged Disconnection Valve DN50 Cód.35FL210209 |
€113.16
|
||
| Ball Flanged Switching Valve DN65 Cód.35FL210210 |
€136.53
|
||
| Ball Flanged Disconnection Valve DN80 Cód.35FL210211 |
€169.74
|
||
| Ball Flanged Disconnection Valve DN100 Cód.35FL210212 |
€222.73
|
||
| Ball Flanged Disconnection Valve DN125 Cód.35FL210213 |
€308.73
|
||
| Ball Flanged Switching Valve DN150 Cód.35FL210214 |
€407.13
|
||
| Ball Flanged Disconnection Valve DN200 Cód.35FL210216 |
€658.05
|
||
| Ball Flanged Disconnection Valve DN250 Cód.35FL210218 |
€944.64
|
||
| Ball Flanged Disconnection Valve DN300 Cód.35FL210220 |
€1,414.50
|
Product Description

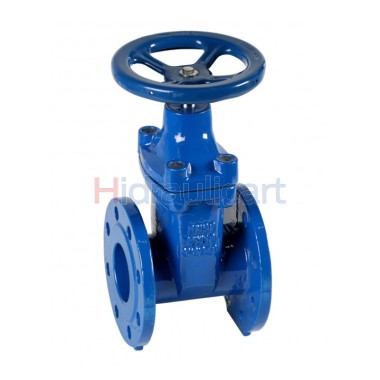

Válvulas de Seccionamento com fecho elástico.
Características
Max temperature operation: 80ºC.
Mounting in horizontal or vertical position.
Watertightness obtained in both directions.
Full pass for minimal load loss.
EPDM coated floodgate.
Interior and exterior painting with Epoxy paint.
Flange standard DIN PN16
Construção
Body: Nodular Cast Iron EN-GJS-500.
Spindle: Zinc plated
| Medida | Dimensões (mm) | Peso (Kg) |
| ||||
| DN | Polegadas | A | B | C | D | ||
| 50 | two" | 150 | 240 | 180 | 165 | 9.5 | |
| 65 | 21/2" | 170 | 270 | 180 | 185 | 13 | |
| 80 | 3" | 180 | 300 | 200 | 200 | 15 | |
| 100 | 4" | 190 | 330 | 250 | 220 | 19 | |
| 125 | 5" | 200 | 375 | 280 | 250 | 26 | |
| 150 | 6" | 210 | 425 | 280 | 285 | 35 | |
| 200 | 8" | 230 | 515 | 320 | 340 | 57 | |
| 250 | 10" | 250 | 600 | 350 | 405 | 76 | |
| 300 | 12" | 270 | 685 | 400 | 460 | 120 | |
-
