You have no items in your shopping cart.
| Product Name | Price | Delivery | Qty |
|---|---|---|---|
| Ball Flanged Check Valve DN50 Cód.37FL245309 |
€152.52
|
||
| Ball Flanged Check Valve DN65 Cód.37FL245310 |
€170.97
|
||
| Ball Flanged Check Valve DN80 Cód.37FL245311 |
€216.48
|
||
| Ball Flanged Check Valve DN100 Cód.37FL245312 |
€279.21
|
||
| Ball Flanged Check Valve DN125 Cód.37FL245313 |
€464.94
|
||
| Ball Flanged Check Valve DN150 Cód.37FL245314 |
€538.80
|
||
| Ball Flanged Check Valve DN250 Cód.37FL245318 |
€2,111.91
|

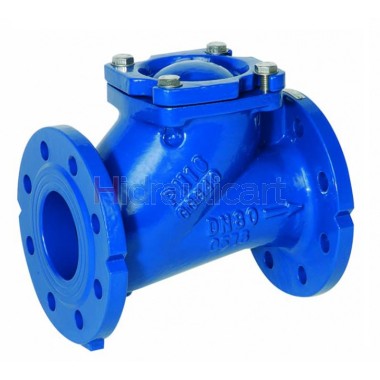

Product Description
As Válvulas de Retenção de Bola foram especialmente desenhadas para trabalhar com águas residuais, fluídos carregados ou viscosos.
Características
Full pass thanks to the free movement of the ball.
Self-cleaning floating ball.
Silent.
Reduced load loss.
Temperature: -10 to 80ºC.
Mounting in horizontal or vertical position.
Watertightness obtained by line pressure thanks to the rubber coating.
Easy maintenance, it is only necessary to unscrew the cap allowing the replacement of the ball without the need to disassemble the valve.
It can also be used in clean water.
Flange standard DIN PN16
Construção
Body: Nodular Cast Iron EN-GJS-400
Ball: 2" to 6" NBR coated aluminum
Ball: 8" to 12" NBR-coated carbon steel
Screws: Stainless Steel
Board: NBR

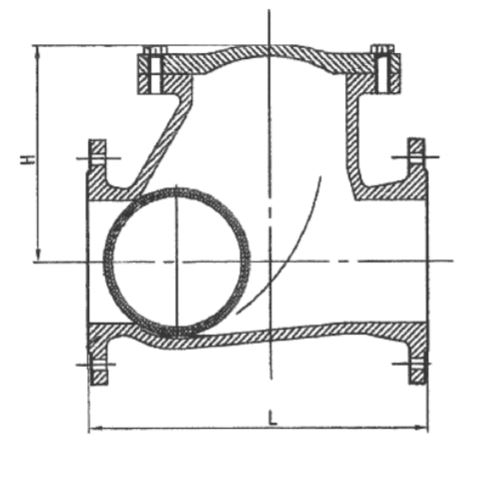

| Medida | Dimensões (mm) | Peso (Kg) | | ||||
| DN | Polegadas | H | L | Diâmetro Flange | Diâmetro Bola | ||
| 50 | two" | 106 | 200 | 165 | 60 | 7.9 | |
| 65 | 21/2" | 129 | 240 | 185 | 80 | 12.8 | |
| 80 | 3" | 146 | 260 | 200 | 95 | 14 | |
| 100 | 4" | 194 | 300 | 220 | 120 | 21.1 | |
| 125 | 5" | 207 | 350 | 250 | 150 | 36.8 | |
| 150 | 6" | 240 | 400 | 285 | 180 | 41.9 | |
| 200 | 8" | 322 | 500 | 340 | 250 | 121 | |
| 250 | 10" | 388 | 600 | 395 | 325 | 176 | |
Specification
| Medida | Dimensões (mm) | Peso (Kg) |
|
||||
| DN | Polegadas | H | L | Diâmetro Flange | Diâmetro Bola | ||
| 50 | 2" | 106 | 200 | 165 | 60 | 7,9 | |
| 65 | 21/2" | 129 | 240 | 185 | 80 | 12,8 | |
| 80 | 3" | 146 | 260 | 200 | 95 | 14 | |
| 100 | 4" | 194 | 300 | 220 | 120 | 21,1 | |
| 125 | 5" | 207 | 350 | 250 | 150 | 36,8 | |
| 150 | 6" | 240 | 400 | 285 | 180 | 41,9 | |
| 200 | 8" | 322 | 500 | 340 | 250 | 121 | |
| 250 | 10" | 388 | 600 | 395 | 325 | 176 | |
-
