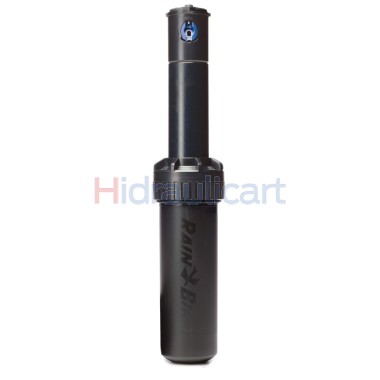

RainBird 5004 PC Sprinkler

The latest evolution in sprinkler performance . The Best Quality Sprinkler in the World.

applications
The 5000 series of mid-range sprinklers complements Rain Bird 's already powerful family of top-adjustable sprinklers, offering increased durability, high-quality features and performance. Whether used in residential or commercial applications, the 5000 Series is committed to demonstrating “the latest evolution in sprinkler performance.”

Characteristics
Smooth sprinkler entry path increases maximum flow capacity.
Improved Rain CurtainTM nozzles (increased range with lower flow per nozzle).
New design for greater water distribution near the sprinkler.
Nozzle extraction for easier sprinkler maintenance.
Standard rubber cover.
Very strong coverage for greater durability in residential or commercial applications.
Debris SentryTM integrated into the sprinkler body to protect the interior from debris.
Very strong retraction spring that ensures the sprinkler lowers and closes after watering.
Adjustment of the sector at the top of the sprinkler using just a simple screwdriver.
Water-lubricated turbine mechanism, designed for longer life and maximum reliability.
Partial irrigation sector from 40° to 360° and full circle with return in the same unit.
The range adjustment screw allows the range to be reduced by up to 25% without changing the nozzle.
Actual emergence height of 10cm from the body cover to the center of the nozzle.
Multifunctional, pressure-activated cleaning gasket that protects the interior of the sprinkler from debris.
Reinforced water passage area for greater lateral resistance.
Additional gaskets for greater protection when using sandy waters.

Specifications
Range: 7.6 to 15.2 m.
Minimum reach using the adjustment screw: 5.7 m.
Operating pressure: 1.7 to 4.5 Bar.
Flow rate: 0.17 to 2.19 m3/h.
Inlet thread on bottom 3/4" female.

Grades :
Sprinkler equipped with nozzle #3 only
When purchasing 4 units, you will receive 2 nozzle kits

Lifting height measured from lid to spout. Total body height is measured with the sprinkler retracted
