| Product Name | Price | Delivery | Expedição | Qty |
|---|---|---|---|---|
| Submersible Solar Kit KSM01 MIDA SOLAR VS 1/19 Cód.KSM01 |
€2,431.30
|
1 Semana | ||
| Submersible Solar Kit KSM02 MIDA SOLAR VS 1/26 Cód.KSM02 |
€2,554.40
|
1 Semana | ||
| Submersible Solar Kit KSM03 MIDA SOLAR VS 1/38 Cód.KSM03 |
€3,013.40
|
1 Semana | ||
| Submersible Solar Kit KSM04 MIDA SOLAR VS 2/10 Cód.KSM04 |
€2,393.80
|
1 Semana | ||
| Submersible Solar Kit KSM05 MIDA SOLAR VS 2/14 Cód.KSM05 |
€2,487.30
|
1 Semana | ||
| Submersible Solar Kit KSM06 MIDA SOLAR VS 2/20 Cód.KSM06 |
€2,918.00
|
1 Semana | ||
| Submersible Solar Kit KSM07 MIDA SOLAR VS 2/27 Cód.KSM07 |
€3,989.80
|
1 Semana | ||
| Submersible Solar Kit KSM08 MIDA SOLAR VS 3/10 Cód.KSM08 |
€2,481.20
|
1 Semana | ||
| Submersible Solar Kit KSM09 MIDA SOLAR VS 3/15 Cód.KSM09 |
€2,906.70
|
1 Semana | ||
| Submersible Solar Kit KSM10 MIDA SOLAR VS 3/20 Cód.KSM10 |
€3,968.40
|
1 Semana | ||
| Submersible Solar Kit KSM11 MIDA SOLAR VS 4/10 Cód.KSM11 |
€2,481.20
|
1 Semana | ||
| Submersible Solar Kit KSM12 MIDA SOLAR VS 4/14 Cód.KSM12 |
€2,902.60
|
1 Semana | ||
| Submersible Solar Kit KSM13 MIDA SOLAR VS 4/18 Cód.KSM13 |
€3,959.00
|
1 Semana | ||
| Submersible Solar Kit KSM14 MIDA SOLAR VS 6/6 Cód.KSM14 |
€2,476.50
|
1 Semana | ||
| Submersible Solar Kit KSM15 MIDA SOLAR VS 6/9 Cód.KSM15 |
€2,896.00
|
1 Semana | ||
| Submersible Solar Kit KSM16 MIDA SOLAR VS 6/13 Cód.KSM16 |
€3,961.10
|
1 Semana |
Product Description
Kit consisting of a submersible pump equipped with a 3~230V three-phase motor, intelligent inverter for solar pumping, MIDA SOLAR , solar panels and support for the solar panels. It can also be powered by single-phase current 1~230V.
This kit consists of a 3x230V three-phase asynchronous COVERCO motor, an ETECH hydraulic VS series. The body is made of AISI 304 stainless steel and floating impellers in Polycarbonate, thus guaranteeing a long useful life of the components.
Motor used in this kit is powered by alternating current (AC) 3x230V provided by NASTEC's MIDA high-technology speed inverter NASTEC.
The NASTEC speed inverter management software automatically adjusts the hydraulic performance to the available power, maximizing the pumped water flow.
Unparalleled user experience.
Thanks to the Nastec NOW App, it is possible to communicate with all Nastec Bluetooth® SMART devices to:
• Monitor multiple operating parameters on a large, colorful display on a Smartphone or Tablet.
• Obtain energy consumption statistics and review alarm history.
• Schedule, archive, copy to multiple devices and even share schedules with multiple users.
• Create reports with the possibility of inserting notes and images, sending them by email or archiving them digitally.
• Remotely control and operate, via Wi-Fi or GSM, a Nastec Bluetooth® SMART device, using a Smartphone connecting it as a modem.

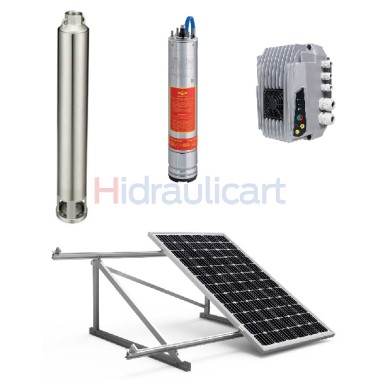

Kit consisting of:
• ETECH submersible pump model VS
• COVERCO 3x230V submersible motor
• NASTEC Speed Variator model MIDA
• 450Wp Solar Panels
• Panel Support
| Model | bomb | Power | Variator | Number of Panels | Flow rate (m3/h) | ||||||||||||||
| 0 | 0.4 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.8 | 3 | 3.3 | 3.6 | 4.2 | ||||||
| kW | CV | Manometric Height (mca) | |||||||||||||||||
| KSM01 | VS 1/19 | 0.55 | 0.75 | MIDA S 203 | 3 | 118 | 100 | 94 | 60 | 57 | 30 | ||||||||
| KSM02 | VS 1/26 | 0.75 | 1.00 | MIDA S 205 | 3 | 156 | 136 | 126 | 105 | 75 | 41 | ||||||||
| KSM03 | VS 1/38 | 1.10 | 1.50 | MIDA S 205 | 4 | 241 | 209 | 193 | 162 | 117 | 63 | ||||||||
| KSM04 | VS 2/10 | 0.55 | 0.75 | MIDA S 203 | 3 | 67 | 60 | 57 | 54 | 49 | 43 | 34 | 28 | 20 | |||||
| KSM05 | VS 2/14 | 0.75 | 1.00 | MIDA S 205 | 3 | 94 | 85 | 80 | 75 | 68 | 60 | 46 | 39 | 27 | |||||
| KSM06 | VS 2/20 | 1.10 | 1.50 | MIDA S 205 | 4 | 133 | 120 | 114 | 107 | 97 | 86 | 66 | 56 | 40 | |||||
| KSM07 | VS 2/27 | 1.50 | 2.00 | MIDA S 207 | 6 | 189 | 164 | 154 | 145 | 132 | 115 | 90 | 75 | 53 | |||||
| KSM08 | VS 3/10 | 0.75 | 1.00 | MIDA S 205 | 3 | 70 | 62 | 59 | 56 | 52 | 48 | 44 | 39 | 34 | 23 | ||||
| KSM09 | VS 3/15 | 1.10 | 1.50 | MIDA S 205 | 4 | 104 | 92 | 88 | 83 | 78 | 72 | 65 | 58 | 51 | 34 | ||||
| KSM10 | VS 3/20 | 1.50 | 2.00 | MIDA S 207 | 6 | 140 | 124 | 119 | 112 | 105 | 97 | 87 | 77 | 66 | 43 | ||||
| * oversize the manometric height by 20 to 30% | |||||||||||||||||||
| *450W solar panels (Voc 50.2V - Vmp 41.8V approx.) | |||||||||||||||||||
| Model | bomb | Power | Variator | Number of Panels | Flow rate (m3/h) | ||||||||||||||
| 0 | 2.5 | 2.7 | 3 | 3.3 | 3.6 | 4.2 | 4.8 | 5.5 | 6 | 7 | 7.2 | 8 | 9 | ||||||
| kW | CV | Manometric Height (mca) | |||||||||||||||||
| KSM11 | VS 4/10 | 0.75 | 1.00 | MIDA S 205 | 3 | 64 | 55 | 54 | 52 | 49 | 47 | 42 | 35 | 26 | 19 | ||||
| KSM12 | VS 4/14 | 1.10 | 1.50 | MIDA S 205 | 4 | 89 | 77 | 75 | 72 | 68 | 65 | 59 | 50 | 37 | 26 | ||||
| KSM13 | VS 4/18 | 1.50 | 2.00 | MIDA S 207 | 6 | 114 | 98 | 95 | 93 | 88 | 85 | 80 | 64 | 49 | 34 | ||||
| KSM14 | VS 6/6 | 0.75 | 1.00 | MIDA S 205 | 3 | 36 | 32 | 30 | 28 | 26 | 23 | 22 | 18 | 14 | |||||
| KSM15 | VS 6/9 | 1.10 | 1.50 | MIDA S 205 | 4 | 53 | 47 | 44 | 41 | 39 | 33 | 32 | 25 | 17 | |||||
| KSM16 | VS 6/13 | 1.50 | 2.00 | MIDA S 207 | 6 | 77 | 70 | 66 | 63 | 60 | 52 | 50 | 43 | 32 | |||||
| * oversize the manometric height by 20 to 30% | |||||||||||||||||||
| *450W solar panels (Voc 50.2V - Vmp 41.8V approx.) | |||||||||||||||||||
Maximum number of panels connected in series: 7 units
The indicated working points are for 100% solar irradiation
-
