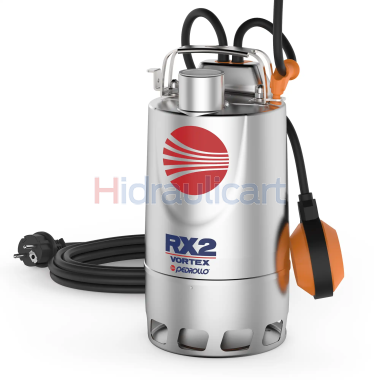

Pedrollo RXm Vortex Sewage Pump

Pedrollo RXm Vortex Sewage Pump

Product Name	Price	Delivery	Qty
Pedrollo RXm 3/20 Vortex Electric Pump, 11/4", 0.75CV, 230V Cód.PED42050010	€416.00 €329.00
RX 3/20 Vortex Cód.PED1111151	€446.00 €352.00
RXm 3/20 GM Vortex Cód.PED1111153	€452.00 €357.00
Pedrollo RXm 5/40 Vortex Electric Pump, 11/2", 1.50CV, 230V Cód.PED42050030	€1,074.00 €849.00

Product Description

Aplicações:
Submersible electric pumps for pumping dirty water with suspended solids. The constructive solution of this model guarantees ease of use and safety in operation thanks to total motor cooling and a double shaft seal. Designed for draining water from residential pits, dirty water with solids in suspension, emergency drainage in garages and flooded attics. Transfer of water from deposits and cisterns. Supplied with automatic float switch.

Funcionamento:
Fluid: Dirty water with suspended solids
Maximum temperature of the liquid: 50ºC
Maximum immersion depth: 10 m
Passage of solids RXm 3/20: 20 mm
Passage of solids RXm 5/40: 40 mm
Maximum number of starts per hour: 25

Caracterísitcas Construtivas
Pump body: AISI 304 stainless steel
Pump base: AISI 304 stainless steel
Turbine: AISI 304 stainless steel
Mechanical seal: Ceramic / Carbuneto de Silício / NBR
External Float: With built-in switch
Power Cable: 5m
Electric Motor Submersible motors with IPX8 degree of protection and class F insulation. Single phase 230 V - 50 Hz with permanent capacitor. Continuous operation S1
Connections Ø Output RXm 3/20: 1¼"
Connections Ø Output RXm 5/40: 1½"

Specification

Modelo	Potência		m³/h (0)	1.2	3.6	6	7.8	9.6	11.4	12.6	14.4	16.2	18	20.4	22..8
	Potência		l/min (0)	20	60	100	130	160	190	210	240	270	300	340	380
	kW	HP	H
RX 3	0.55	0.75	10	9.5	8.7	7.7	6.8	5.8	4.5	3.6	2	-	-	-	-
RX 5	1.1	1.5	12.8	12.5	11.8	11	10.4	9.7	8.8	8.3	7.3	6.3	5.3	3.7	2

Modelo	Saída	Dimensões mm								Kg
Modelo	DN	a	b	h	h1	d	e	p	⌀	Kg
RX 3/20	1¼"	147	84	330	305	25	ajustável	350	350	7
RXm 3/20	1¼"	147	84	330	305	25	ajustável	350	350	7.7
RXm 3/20 GM	1¼"	147	150	332	305	25	ajustável	350	240	7.9
RXm 5/40	1½"	215	115	432	400	50	ajustável	500	500	14.8
