Product Name	Price	Delivery	Qty
Electric pump Nocchi BIOX 200/8, 230V, Float Cód.NOC42005010	€485.00 €356.20
Electric pump Nocchi BIOX 300/10, 230V, Float Cód.NOC42010010	€521.00 €382.70
Electric pump Nocchi BIOX 400/12, 230V, Float Cód.NOC42020010	€555.00 €407.60

Product Description

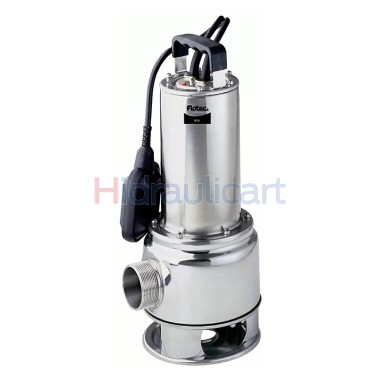

BIOX by FLOTEC series pumps are made of AISI 304 stainless steel. They work completely submerged, the pumped liquid cools the motor externally. Manufactured with the vortex impeller retracted.

Automatic version equipped with float switch.

Aplicações
All pumping and drainage applications for sewage, civil and industrial effluents with suspended solids. Pumping stations.

Motor
Dry rotor engine
IP 68 protection level
Class F insulation
Fully insulated cable connection
Self-lubricating ball bearings.
Rotation speed 2,850 rpm.
Voltage: 230V 50Hz

Limitações de uso
Nature of the liquid: wastewater and sewage with solids
Max liquid temperature: 40°C
Maximum submersion height in water: 7m
Maximum passage of solids: 40 mm

Connections
200/8: 11/2"
300/10, 400/12: 2"

Specification

BIOX - FLOTEC
Modelo	Potência (CV)	Intensisade (A)	Q
			l/min 0	50	100	150	200	250	300	350
			m³/h 0	3.0	6.0	9.0	12.0	15.0	18.0	21.0
			H [m]
200/8	0,80	4,1	9	7.2	5.7	3.9	2
300/10	1,00	5,8	11	8	6.2	4.9	2.7	1.9
400/12	1,50	7,2	12	11.3	9.9	8.6	7.5	5.8	4	2
