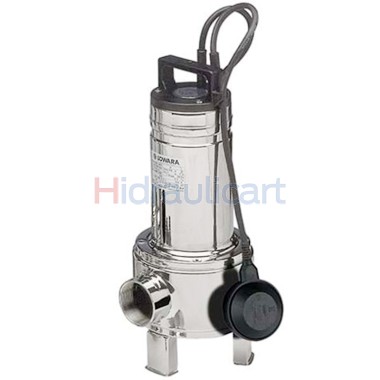

Lowara Domo Wastewater Pump

Electric pumps of the DOMO series are available in double open channel and vortex (DOMO VX).
Designed for pumping liquids with suspended solids up to 50mm in diameter (35mm for DOMO 7 and DOMO 7VX).
Available in 4 models from 0.55kW to 1.50kW.
Sistema de vedação DRIVELUB.

Aplicações
Emptying cellars, garages, cellars.
Drainage of shipyards.
Emptying of septic tanks, cisterns and tanks.
Irrigation of gardens and vegetable gardens.
Source power.
Pumping water from washing machines, showers, sinks.
Emptying of tanks in industrial and ecological applications.

Especificações
Maximum fluid temperature: 35°C with the pump fully submerged
Motor in dry bath.
Cable: H07RN.
Insulation class: 155°C (F).
Protection: IPX8.
Maximum immersion depth: 5 m.
Version: single phase 220-240V, 50Hz 2 poles. three phase 380-415V, 50Hz 2 poles.
Motor power: - single phase: 0.55 to 1.1 kW. three-phase: 0.55 to 1.5 kW.

Características da Versão Monofásica:
Float switch for automatic operation.
Condenser installed inside the electric pump.

Características dos modelos DOMO 7 e DOMO 7VX
11/2" threaded female outlet.
Handling liquids up to 35mm in diameter
Impeller in fiberglass reinforced technopolymer (DOMO S7 and DOMO S7VX with stainless steel impeller also available).

Características dos modelos DOMO 10-15-20 e DOMO 10VX-15VX-20VX
2" threaded female outlet (can be modified to flanged outlet with optional accessory).
Handling liquids up to 50mm in diameter.
Trubina in stainless steel.

Sistema de Vedação DRIVELUB
Watertight electric motor protected by multiple sealing system with oil chamber. A V-ring and mechanical seal in silicon carbide, extremely resistant to wear and abrasion, as well as a lip seal continuously lubricated by the DRIVELUB system, providing an extreme barrier against infiltrations.

Datasheet

Installation Manual

Para mais informação, consulte a Ficha Técnica

Para mais informação, consulte o Manual Instalação
