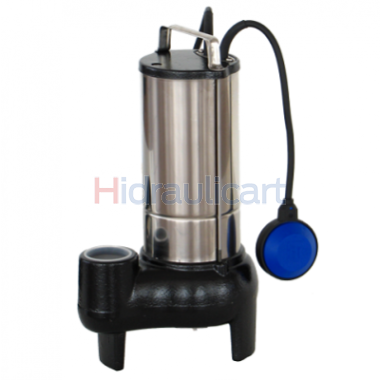

OLIJU VORTEX N Wastewater Pump up to 30 m3/h

Zoom

OLIJU VORTEX N Wastewater Pump up to 30 m3/h

VER PREÇO / COMPRAR

Product Name	Price	Delivery	Qty
Submersible Electric Pump Vortex NJ 40.15.1M, 230V, 0.20Cv, 11/2" Cód.47299003	€179.00 €141.00
Submersible electric pump Vortex NA 35.60.1M, 230V, 0.80Cv, 11/4" Cód.47300003	€223.00 €176.00
Submersible Electric Pump Vortex NA 35.60.1A, 230V, 0.80Cv, 11/4", with Float Cód.47300005	€238.00 €188.00
Submersible Electric Pump Vortex NA 35.60.3, 400V, 0.80Cv, 11/4" Cód.47300010	€219.00 €173.00
Vortex Submersible Electric Pump NB 40.75.1M, 230V, 1.00Cv, 11/2" Cód.47305003	€239.00 €189.00
Vortex Submersible Electric Pump NB 40.75.1A, 230V, 1.00Cv, 11/2", with Float Cód.47305005	€250.00 €197.00
Vortex Submersible Electric Pump NB 40.75.3, 400V, 1.00Cv, 11/2" Cód.47305010	€239.00 €189.00
Submersible Electric Pump Vortex NC 50.110.1M, 230V, 1.50Cv, 2" Cód.47310003	€355.00 €280.00
Submersible Electric Pump Vortex NC 50.110.1A, 230V, 1.50Cv 2", with Float Cód.47310005	€363.00 €287.00
Submersible Electric Pump Vortex NC 50.110.3, 400V 1.50Cv, 2" Cód.47310010	€348.00 €275.00
Vortex Submersible Electric Pump ND 50.150.1M, 230V, 2.00Cv, 2" Cód.47315003	€380.00 €300.00
Vortex Submersible Electric Pump ND 50.150.1A, 230V, 2.00Cv, 2", with Float Cód.47315005	€396.00 €313.00
Vortex Submersible Electric Pump ND 50.150.3, 400V, 2.00Cv, 2" Cód.47315010	€376.00 €297.00

Product Description

The N VORTEX series pumps are suitable for pumping drainage water and waste water with a ball clearance of 30 to 50 mm. They are used in a variety of applications in the public and private sectors as well as in industry and commerce.

Permanent or transportable. Single-phase models can be equipped with float switch control for automatic pump operation depending on the liquid level in the reservoir.

Technical characteristics
Single-phase asynchronous motor 210/230 V 50 Hz / Three-phase 380/410 V 50 Hz;
Insulation class F;
Maximum immersion depth: 10m;
Shaft in stainless steel X 20 Cr 13 UNI 6901 (AISI 420B);
IP68 protection;
Outer and engine liners in stainless steel X 10 CrNiS 1809 UNI 6901 (AISI 304);
High quality mechanical seal (aluminium oxide-carbon-graphite).
Maximum water temperature: 35º C
Maximum starts/hour: 45
Brands: OLIJU , MANTRA , PRINZE .

Notice
The 1M and three-phase models do not have a float switch.

Specification

VORTEX N
Model	I [A]		P2		Exit	Cable	Solids	Weight	Q
	1 ~ 230V	3 ~ 400V	[kW]	[HP]	Pol.	m	mm	Kg	l/min 0	25	50	75	100	125	175	200	250	300	350	400	450	500
									m ³ /h 0	1.5	3	4.5	6	7.5	10.5	12	15	18	21	24	27	30
									H [m]
N 35.60	5.2	1.4	0.60	0.80	11/4"	10	33	10.5	11.0	10	8.8	7.6	6.5	5.3	3.2	2.2	0.2
N 40.15	2.0	1.0	0.15	0.20	11/2"	10	30	9.8	7.0	6.3	5.5	4.7	3.9	3	1.1
N 40.37	3.4	1.3	0.37	0.50	11/2"	10	30	10.0	9.0	8.5	8.0	7.4	6.8	6.1	4.6	3.7	1.8
N 40.75	6.4	2.6	0.75	1.00	11/2"	10	35	11.5	11.0	10.2	9.5	8.8	8.0	7.2	5.4	4.5	2.5	0.4
N 50.110	9.0	3.0	1.10	1.50	2"	10	50	17.0	12.0	11.9	11.2	9.8	9.8	9.1	7.7	6.9	5.5	4.1	2.6	1.1
N 50.150	9.4	3.7	1.50	2.00	2"	10	50	19.0	14.0	13.6	12.9	11.3	11.3	10.6	9.1	8.4	7.0	5.6	4.2	2.9	1.5	0.3
