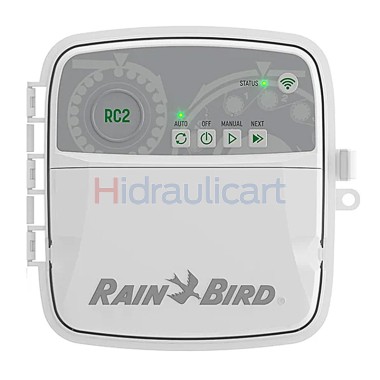

Rain Bird RC2 Wi-Fi Irrigation Programmer

RC2 Smart Controller

The complete smart programmers solution

With Rain Bird 's NEW RC2 Smart Irrigation Controller solution, you can confidentially manage your system from anywhere.

NEW Quick Pair Technology for faster, more seamless setup
Wi-Fi access with real-time alerts and automatic weather adjustments that save time and money
Programmer access via the Rain Bird mobile app with or without Wi-Fi.

Functionalities
Easy system installation
Programming templates for easy configurations
Quick Pair
Technology Quick Pair
Wireless access point for complete system access without Wi-Fi
Multilingual for definition in native language
Seamless remote management and scheduling
Wi-Fi connection for remote site management.
Thanks to our free professional app, you can use your phone as a wireless remote control for single-zone watering, all-zone watering, or set a custom schedule.
Manage and monitor all irrigation circumstances and warnings in real time.

Functionalities
Easy system installation
Programming templates for easy configurations
Quick Pair
Technology Quick Pair
Wireless access point for complete system access without Wi-Fi
Multilingual for definition in native language
Seamless remote management and scheduling
Wi-Fi connection for remote site management.
Thanks to our free professional app, you can use your phone as a wireless remote control for single-zone watering, all-zone watering, or set a custom schedule.
Manage and monitor all irrigation circumstances and warnings in real time.

Intelligent and responsible
Weather data from weather sources automatically adjusts system run times daily. Your garden only receives the water it needs while saving 50% of water.
WaterSense certified with superior programming designed to meet the most stringent water restrictions.

Specifications
2.4GHz Wi-Fi router (only) supports WEP and WPA
security settings WPA
Compatible with iOS 8.0 and Android 6 (Marshmallow) or later mobile devices
Operating Temperature: 14°F (-10°C) to 149°F (65°C)
Storage Temperature: From -40°F (-40°C) to 150°F (66°C)
Operating humidity: 95% max. at 40°F to 120°F (4°C to 49°C) in a non-condensing environment
Main valve control
Pre-installed power cord (120V model only)
3 programs, 4 time/program starts

Electrical Specifications
Required Input: 120 V∿, 60 Hz, 0.23 A (International models: 230 V∿, 50-60 Hz, 0.14 A)
Output: 24 V~, 60 Hz, 1.0 A maximum (International models: 24 V~, 50-60 Hz, 1.0 A maximum) for outdoor models, .6 A maximum for indoor models
Regulatory Compliance 120V Models: UL, FCC, ISED 230V Outdoor Models: CE, UKCA, ACMA RC 230V Indoor Models: CE

Dimensions
Width: 7.92in (20.1 cm)
Height: 7.86in (20.0cm)
Depth: 3.51 in. (9.0cm)

Indoor-only models:
Height: 16.8 cm
Width: 16.7 cm
Depth: 4 cm

For more information, see the Technical Data Sheet

For more information, see the Instruction Manual
