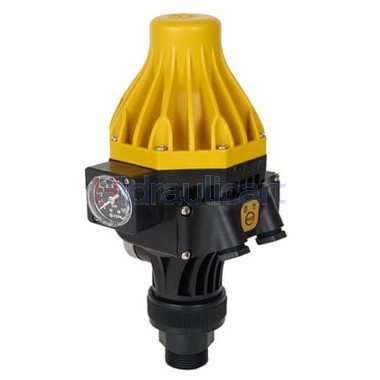

Espa Pressdrive pump controller

The Pressdrive is a newly designed device that guarantees optimal control of electric pumps integrated in hydraulic installations. Derived from a hydraulic design and electronic logic, it simultaneously measures pressure and flow, allowing you to control the start and stop of the pump. Replaces the traditional system of autoclave and pressure switch.

It does not require air refills and eliminates annoying pressure and flow variations during use.

Protects the pump from running dry. It does not require any type of adjustment or maintenance. Much less hassle than traditional systems, absolutely reliable, resistant and easy to install.

Desempenhos
Turns the pump on and off depending on the opening of the taps.
Maintains constant pressure during use.
Stop the pump if there is no water.
It dampens the effects of water hammer.

Características Técnicas
Single-phase supply voltage: 230 V
Frequency: 50 Hz
Maximum current: 10(6)A - 1.1 kW
Degree of protection: IPX5
Maximum exercise pressure: 10 Bar
Operating temperature: 0-40 °C
Entry: 1" Male
Output: 1" Female
