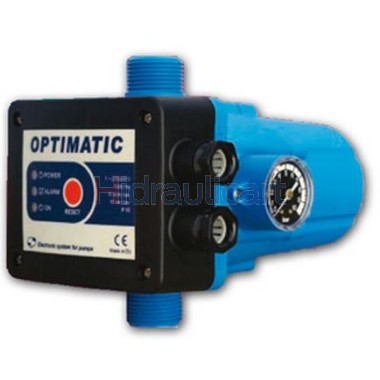

Optimatic FM Pressure Controller

Compact device for automatic control and protection of electric pumps. The patented system is equipped with special electronic flow and pressure sensors integrated into the electronic circuit that controls the operation of the electric pump and maintains constant pressure and flow, and has a safety system against dry running. OPTIMATIC replaces the traditional system of autoclave, pressure switch, check valve and level switch. This device switches on the electric pump automatically when any water point is opened and stops it after a 10-second delay as soon as there is no more water consumption.

Desempenhos
Turns the pump on and off depending on the opening of the taps.
Maintains constant pressure during use.
Reserve for dripping taps
Stop the pump if there is no water.
It dampens the effects of water hammer.

Características Técnicas
Single-phase supply voltage: 230 V
Acceptable voltage variations: ±10%
Frequency: 50/60 Hz
Maximum current: 16(8)A - 1.5kW
Degree of protection: IP65
Maximum exercise pressure: 10 Bar
Operating temperature: 0-60°C
Male Gaskets: 1"
Body: Non-toxic thermoplastic
Membrane: special natural rubber
Spring: Steel DIN 17223 C/84
Flow valve: High strength technical thermoplastic
Check valve: High-resistance technical thermoplastic
Electronic board housing: Self-curing thermoplastic resin
Molded circuit: FR4
