Automatic Filling Gun SB325 PIUSI

Descrição

SB325

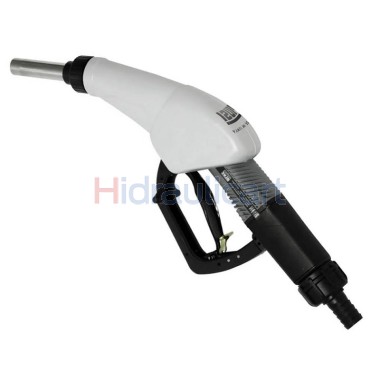

PIUSI SB325 is the automatic pistol intended for use with AdBlue®. The spout is made of stainless steel. The housing is ergonomic and flexible. It is also reliable in protecting against aging and UV rays. Security is guaranteed by the built-in deletion system. The nozzle of the pistol was, in fact, developed in such a way as to come loose in case the vehicle leaves without warning. In addition, this system simplifies and speeds up repairs, which are reduced to simply replacing the spout.

PIUSI SB325 is a decidedly versatile automatic pistol.
In fact, it is suitable for use in various sectors, including logistics and industry.

Technical features:

Compatible with AdBlue® (according to DIN 70070) and other types (*).
Viscosity range from 1 to 6 cSt.
3/4” inlet with hose port.
Nozzle Outer Diameter: 19mm
Material in contact with liquid, according to ISO 22241-2:2006
Input and output: 3/4″
Weight: 0.7kg.

Performance:

The PIUSI SB325 guarantees a maximum flow rate of 45 l/min. The maximum operating pressure is 3.5 bar.

Materials:

The PIUSI SB325 has a stainless steel spout. The body is made of technopolymer.

An instruction manual is also included in the package.

Para mais informação, consulte a Ficha Técnica.
