PEDROLLO PQ Peripheral Water Pump up to 3.0 m3/h

Product Name	Price	Delivery	Qty
Pedrollo PQm60 electric pump, 230V Cód.PED42200005	€151.00 €110.90
Pedrollo PQm70 electric pump, 230V Cód.PED42200015	€315.00 €231.90
Pedrollo PQ60 electric pump, 400V Cód.PED42200007	€184.00 €135.90
Pedrollo PQ70 electric pump, 400V Cód.PED42200020	€339.00 €248.90

Product Description

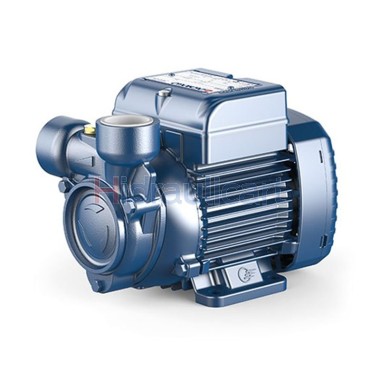

PQ - Peripheral Impeller Pumps

Radial suction peripheral pump. Designed to transfer clean water, free of abrasive particles and liquids that do not damage the pump components. Its compact design and efficient hydraulic performance make it ideal for domestic applications.

Peripheral electric pump;
Brass Turbine;
Electric motor with built-in thermal protection at 240V ;
Maximum suction 8m ;
Came in stainless steel;
Maximum fluid temperature 90ºC ;
Maximum ambient temperature 50ºC for PQ60 and 40ªC for PQ70 ;
Side aspiration;
IPX4 .

Model	Volts	HP	Amp	Asp. and Exit	MCA	L/H
PQm 60	240	0.5	2.4	1"	5-38	2400-300
PQ 60	400	0.5	1.15	1"	5-38	2400-300
PQm 70	240	0.85	4.8	1"	18-62	3000-300
PQ 80	400	1	2.2	1"	22-66	3000-300

	Deutsch
	English
	Español
	Français
	Italiano
	Português

PEDROLLO PQ Peripheral Water Pump up to 3.0 m3/h

Product Description

Specification

Documents

Partilhe

Payment Methods

Security

Social Networks

Costumer Service

Change Language

Model	Engine	FLOW RATE L/min
Model	HP	5	10	15	20	25	30	35	40	50
PQ 60	0.5	38	33.5	29	24	19.5	15	10	5	-
PQ 70	0.85	62	57	52	47	42	37	32	27	18
PQ 80	1	66	61	56	51	46	41	36.5	31	22
