Surface Water Pumps - PV

Product Name	Price	Delivery	Qty
PEDROLLO PVm 60 electric pump Cód.PED1100070	€396.00 €389.00
PEDROLLO PV 60 electric pump Cód.PED1100069	€428.00 €421.00
PEDROLLO PV 81 electric pump Cód.PED1100072	€513.00 €504.00
PEDROLLO PV 90 electric pump Cód.PED1100071	€522.00 €513.00

Product Description

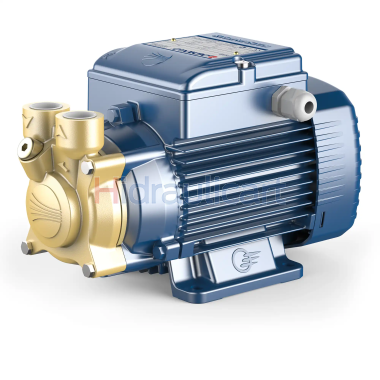

Feature - PV ELECTRIC PUMP

PV peripheral pumps are designed to transfer clean water, free of abrasive particles and liquids that do not damage the pump components. The construction features of these compact brass pumps ensure protection against rust and oxidation and are suitable for various industrial applications such as cooling and air conditioning.

Peripheral electric pump;
Brass body;
Brass turbine;
Came in stainless steel;
Electric motor with built-in thermal protection at 240V ;
Maximum suction 8m ;
Maximum fluid temperature 90ºC ;
Maximum ambient temperature 50ºC ;
IPX4 .

Model	Volts	HP	Amp	Asp and exit	MCA	L/H
PVm 60	240	0.5	2.3	1/2"	5-41	1920-120
PV 60	400	0.5	1.2	1/2"	5-41	1920-120
PV 81	400	0.6	1.2	1/2"	5-75	1020-120
PV90	400	1.2	2.4	3/4"	5-95	2100-120

Model	Engine	FLOW RATE L/min
Model	HP	2	4	5	6	8	10	14	15	18	20	25	30	32	35
PV 60	0.5	-	-	38	-	-	31.5	-	25.5	-	19.5	13.5	7.5	5	-
PV 81	0.5	84	74	69	64	54.5	44.5	25	-	5	-	-	-	-	-
PV 90	1	-	-	90	-	-	75.5	-	61.5	-	47.5	33	19	13.5	5
