4" Submersible Pumps for artesian wells

Product Name	Price	Delivery	Qty
4SR 1,5/22 MPD Cód.PED1104528	€951.00 €818.00
4SR 1,5/22 TPD Cód.PED1104529	€944.00 €812.00
4SR 1,5/30 MPD Cód.PED1104530	€1,113.00 €958.00
4SR 1,5/30 TPD Cód.PED1104531	€1,053.00 €906.00
4SR 1,5/44 TPD Cód.PED1104532	€1,643.00 €1,414.00
4SR 2/12 MPD Cód.PED1104522	€764.00 €657.00
4SR 2/12 TPD Cód.PED1104523	€764.00 €657.00
4SR 2/17 MPD Cód.PED1104524	€868.00 €747.00
4SR 2 /17 TPD Cód.PED1104525	€868.00 €747.00
4SR 2/23 MPD Cód.PED1104526	€1,015.00 €873.00
4SR 2/23 TPD Cód.PED1104527	€966.00 €831.00
4SR 2/33 TPD Cód.PED1104558	€1,201.00 €1,034.00
4SR 2/9 MPD Cód.PED1105330	€728.00 €626.00
4SR 2/9 TPD Cód.PED1104521	€728.00 €626.00
4SR 4/12 MPD Cód.PED1105328	€817.00 €703.00
4SR 4/12 TPD Cód.PED1105329	€817.00 €703.00
4SR 4/15 MPD Cód.PED1104535	€951.00 €818.00
4SR 4/15 TPD Cód.PED1104536	€891.00 €767.00
4SR 4/22 TPD Cód.PED1105201	€1,041.00 €896.00
4SR 4/30 TPD Cód.PED1104538	€1,348.00 €1,160.00
4SR 4/40 TPD Cód.PED1104539	€2,005.00 €1,726.00
4SR 4/8 MPD Cód.PED1104533	€743.00 €639.00
4SR 4/8 TPD Cód.PED1104534	€743.00 €639.00
4SR 6/9 MPD Cód.PED1105282	€794.00 €683.00
4SR 6/9 TPD Cód.PED1105283	€794.00 €683.00
4SR 6/13 MPD Cód.PED1105284	€939.00 €808.00
4SR 6/13 TPD Cód.PED1105285	€879.00 €756.00
4SR 6/17 TPD Cód.PED1105286	€1,001.00 €861.00
4SR 6/24 TPD Cód.PED1104540	€1,303.00 €1,121.00
4SR 6/32 TPD Cód.PED1105438	€1,664.00 €1,432.00
4SR 6/43 Cód.PED1104541	€2,125.00 €1,829.00

Product Description

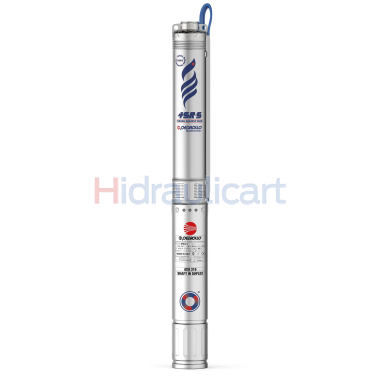

4SR - 4" Submersible Pumps for artesian wells

They are recommended for pumping clean water. Due to their high efficiency and reliability, they are suitable for domestic, civil and industrial applications, for distributing water coupled to autoclaves, for irrigation, for washing systems and for pressure boosting.

High corrosion resistance;
Adjustable oscillating turnstiles for axial movement prevent blocking (Registered Patent) ;
They allow the passage of sand up to 150g per m ³ ;
High quality stainless steel components;
Noryl;
Stainless steel diffuser cover;
Maximum fluid temperature 35ºC ;
Immersion limit 200m ;
Maximum number of starts per hour: 20 ;
Vertical mounting (horizontal mounting: 4SR 2 /9/12/17/23; 4SR 1.5 /22; 4SR 4 /8/12/15/22; 4SR 6 /9/13/17 );

Model	Volts	HP	Amp	Asp. and Exit	MCA	L/H
4SR 1.5/22 MPD	240	1.5	8.3	1.1/4"	52.5-154	2700-300
4SR 1.5/22 TPD	400	1.5	3.4	1.1/4"	52.5-154	2700-300
4SR 1.5/30 MPD	400	2	10.7	1.1/4"	70-206	2700-300
4SR 1.5/30 TPD	400	2	4.3	1.1/4"	70-206	2700-300
4SR 1.5/44 TPD	240	3	6.1	1.1/4"	100-295	2700-1200
4SR 2/9 MPD	240	0.75	4.7	1.1/4"	19-67	3900-600
4SR 2/9 TPD	400	0.75	2	1.1/4"	19-67	3900-600
4SR 2/12 MPD	240	1	5.9	1.1/4"	25.5-90	3900-600
4SR 2/12 TPD	400	1	2.5	1.1/4"	25.5-90	3900-600
4SR 2/17 MPD	240	1.5	8.3	1.1/4"	36.5-127	3900-600
4SR 2/17 TPD	400	1.5	3.4	1.1/4"	36.5-127	3900-600
4SR 2/23 MPD	240	2	10.7	1.1/4"	49-172	3900-600
4SR 2/23 TPD	400	2	4.3	1.1/4"	49-172	3900-600
4SR 2/33 TPD	400	3	6.1	1.1/4"	71-246	3900-600
4SR 4/8 MPD	400	1	5.9	1.174"	22.5-60.5	6000-1200
4SR 4/8 TPD	240	1	2.5	1.1/4"	22.5-60.5	6000-1200
4SR 4/12 MPD	400	1.5	8.3	1.1/4"	33.5-91	6000-1200
4SR 4/12 TPD	240	1.5	3.4	1.1/4"	33.5-91	6000-1200
4SR 4/15 MPD	400	2	10.7	1.1/4"	42-114	6000-1200
4SR 4/15 TPD	400	2	4.3	1.1/4"	42-114	6000-1200
4SR 4/22 TPD	400	3	6.1	1.1/4"	61.5-167	6000-1200
4SR 4/30 TPD	400	4	7.1	1.1/4"	84-228	6000-1200
4SR 4/40 TPD	400	5.5	9.2	1.1/4"	112-304	6000-1200
4SR 6/9 MPD	240	1.5	8.3	2"	26-58	9000-1500
4SR 6/9 TPD	400	1.5	3.4	2"	26-58	9000-1500
4SR 6/13 MPD	240	2	10.7	2"	35-83	9000-1500
4SR 6/13 TPD	400	2	7.1	2"	35-83	9000-1500
4SR 6/17 TPD	400	3	4.3	2"	45-107	9000-1500
4SR 6/24 TPD	240	4	9.2	2"	58-152	9000-1500
4SR 6/32 TPD	400	5.5	6.1	2"	77-203	9000-1500
4SR 6/43 TPD	400	7.5	11.7	2"	104-273	9000-1500

NOTE: Although Pedrollo pumps include a non-return valve, it is recommended to install 1 additional valve at the pump outlet.

Specification

Model	Engine	FLOW RATE L/min
Model	HP	5	10	20	25	30	40	45	50	60	65	70	80	90	100	120	150
4SR 1.5/22	1.5	154	148	133	122	109	75	52.5	-	-	-	-	-	-	-	-	-
4SR 1.5/30	2	206	199	178	164	147	100	70	-	-	-	-	-	-	-	-	-
4SR 1.5/44	3	295	284	255	235	210	144	100	-	-	-	-	-	-	-	-	-
4SR 2/9	0.75	-	67	63	-	57.5	49.5	-	39.5	26.8	19	-	-	-	-	-	-
4SR 2/12	1	-	90	84	-	76	66	-	53	36	25.5	-	-	-	-	-	-
4SR 2/17	1.5	-	127	119	-	108	94	-	75	50.5	36.5	-	-	-	-	-	-
4SR 2/23	2	-	172	161	-	146	127	-	101	68.5	49	-	-	-	-	-	-
4SR 2/33	3	-	246	231	-	210	182	-	145	98	71	-	-	-	-	-	-
4SR 4/8	1	-	-	60.5	-	58.5	56	-	53	49	-	44	38	31	22.5	-	-
4SR 4/12	1.5	-	-	91	-	88	84	-	79	73	-	66	57	46.5	33.5	-	-
4SR 4/15	2	-	-	114	-	110	105	-	99	92	-	83	71	58	42	-	-
4SR 4/22	3	-	-	167	-	161	154	-	145	134	-	121	105	85	61.5	-	-
4SR 4/30	4	-	-	228	-	220	210	-	198	183	-	165	143	116	84	-	-
4SR 4/40	5.5	-	-	304	-	293	280	-	264	244	-	220	190	154	112	-	-
4SR 6/9	1.5	-	-	-	58	-	-	-	54	-	-	-	-	-	44	-	26
4SR 6/13	2	-	-	-	83	-	-	-	78	-	-	-	-	-	61	-	35
4SR 6/17	3	-	-	-	107	-	-	-	100	-	-	95	-	-	79	65	45
4SR 6/24	4	-	-	-	152	-	-	-	146	-	-	138	-	-	119	100	58
4SR 6/32	5.5	-	-	-	203	-	-	-	194	-	-	175	-	-	159	125	77
4SR 6/43	7.5	-	-	-	273	-	-	-	261	-	-	247	-	-	213	180	104
