| Product Name | Price | Delivery | Qty |
|---|---|---|---|
| Electric pump Espa Prisma 15-3, 0.50CV, 230V Cód.ESP010030 |
€310.00 €227.70 |
||
| Electric pump Espa Prisma 15-4, 0.75CV, 230V Cód.ESP010050 |
€329.00 €241.70 |
||
| Electric pump Espa Prisma 15-4, 0.75CV, 400V Cód.ESP010060 |
€339.00 €249.00 |
||
| Electric pump Espa Prisma 15-5, 1.00CV, 230V Cód.ESP010070 |
€356.00 €261.50 |
||
| Electric pump Espa Prisma 15-5, 1.00CV, 400V Cód.ESP010080 |
€359.00 €263.70 |
Product Description

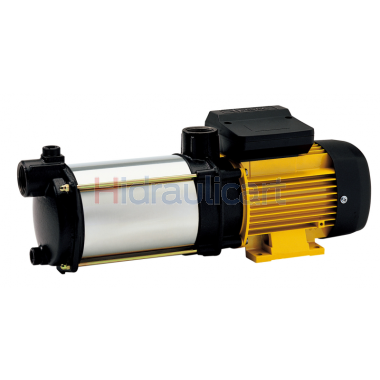

ESPA PRISMA series horizontal multistage centrifugal pumps, silent and with excellent performance, suitable for domestic and industrial applications, pressure groups and irrigation systems.
Operation
Fluid: Clean waters and non-aggressive or viscous liquids, free of solid substances.
Maximum fluid temperature: 40 ºC
Maximum suction height: 7 m
Constructive characteristics
Suction body: Cast iron with cataphoresis treatment
Drive body: Cast iron with cataphoresis treatment
Impellers: AISI 304 Stainless Steel
Diffusers: Technopolymer
Outer housing: AISI 304 stainless steel
Motor shaft: AISI 431 stainless steel
Mechanical seal: Ceramic/Graphite
Electric Motor
Two-pole induction type, closed and self-ventilated, suitable for continuous operation, with IPX5 degree of protection and class F insulation. Single-phase 230V - 50Hz with permanent capacitor or three-phase 400V - 50 Hz. The motors must be thermally protected by the user .
Connections
Suction: 1"
Compression: 1"
Specification
| PRISMA 15 | |||||||||||||||
| Model | I [A] | P1 | P2 | Q | |||||||||||
| 1~230V | 3~230V | 3~400V | [kW] | [kW] | [HP] | l/min 0 | 10 | 20 | 30 | 35 | 40 | 50 | 60 | 65 | |
| m3 /h0 | 0.6 | 1.2 | 1.8 | 2.1 | 2.4 | 3.0 | 3.6 | 3.9 | |||||||
| H [m] | |||||||||||||||
| PRISMA 15 3 | 2.7 | 2.1 | 1.2 | 0.61 | 0.37 | 0.50 | 32 | 30 | 26 | 24 | 22 | 17 | 11 | 7 | |
| PRISMA 15 4 | 3.5 | 2.3 | 1.3 | 0.79 | 0.55 | 0.75 | 43 | 39 | 35 | 32 | 27 | 22 | 14 | 9 | |
| PRISMA 15 5 | 4.1 | 3.3 | 1.9 | 0.95 | 0.74 | 1.00 | 51 | 47 | 42 | 38 | 34 | 25 | 17 | 12 | |
Documents
For more information, see the Technical Data Sheet
