| Product Name | Price | Delivery | Qty |
|---|---|---|---|
| MB35 22.75.1, 0.75hp, 400V, 22m, 11/4" Cód.4701010071 |
€262.00
|
||
| MB35.30.75.1, 1.00hp, 230v, 30m, 11/4" Cód.4701010065 |
€289.00
|
||
| MB35 30.75.3, 1.00hp, 400v, 30m, 11/4" Cód.4701010077 |
€266.00
|
||
| MB35 30.110.1, 1.50hp, 230v, 30m, 11/4" Cód.4701010067 |
€276.00
|
||
| MB35 40.150.3, 2.00hp, 400v, 40m, 11/4" Cód.4701010089 |
€457.00
|
Product Description

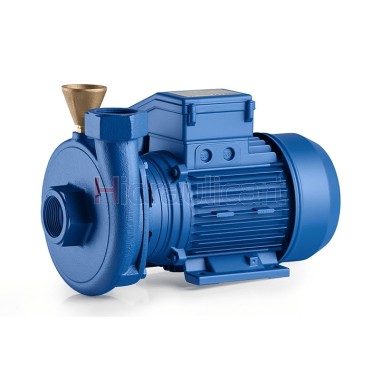

Highly robust cast iron centrifugal pump. It delivers large volume flows at low pressure levels and is not recommended for pressurization systems. Suitable for agricultural irrigation, transfers, water movement.
Operation
Fluid: Clean waters and non-aggressive or viscous liquids, free of solid substances.
Maximum suction height: 7 m
Maximum fluid temperature: 35 ºC
Construction features
Body: Cast Iron
Impeller: Cast Iron
Mechanical seal: Ceramic/Carbon
Electric Motor
Two-pole induction type, closed and self-ventilated, suitable for continuous operation, with IP44 degree of protection and class F insulation. Single-phase 230V - 50Hz with permanent capacitor - 50 Hz. The motors must be thermally protected by the user.
Connections
11/4" suction
11/4" compression
Specification
Connections
11/4" suction
11/4" compression
| MB 35 | |||||||||||||
| Model | I [A] | P1 | P2 | Q | |||||||||
| 1~230V | 3~230V | 3~400V | [kW] | [kW] | [HP] | l/min 0 | 50 | 100 | 133 | 150 | 200 | 216 | |
| m3 /h0 | 3.0 | 6.0 | 8.0 | 9.0 | 12.0 | 13.0 | |||||||
| H [m] | |||||||||||||
| MB35 22.75 | 5.6 | - | 1.7 | 0.75 | 1.00 | 22 | 16 | 9 | 3 | ||||
| MB35 30.75 | 5.6 | - | 1.7 | 0.75 | 1.00 | 30 | 22 | 14 | 7 | 3 | |||
| MB35 30.110 | 7.3 | - | 2.6 | 1.10 | 1.50 | 30 | 24 | 19 | 17 | 13 | 5 | 3 | |
| MB35 40.150 | - | 3.3 | 1.50 | 2.00 | 40 | 33 | 18 | 9 | 5 | ||||
Documents
For more information, see the Technical Data Sheet
-
