Product Description

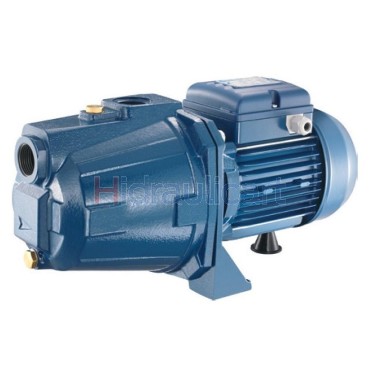

Centrifugal self-priming pump suitable for water supply to domestic installations.
Operation
Fluid: Clean waters and non-aggressive or viscous liquids, free of solid substances.
Maximum fluid temperature: 50 ºC
Maximum suction height: 7 m
Construction features
Pump body: Cast iron
Pump support: Cast iron
Impellers: Noryl or Brass
Diffusers: Noryl
Motor shaft: AISI 416 stainless steel
Mechanical seal: Ceramic/Graphite
Electric Motor
Two-pole induction type, closed and self-ventilated, suitable for continuous operation, with IP44 degree of protection and class F insulation. Single-phase 230V - 50Hz with permanent capacitor. Motors must be thermally protected by the user.
Connections
Suction: 1"
Compression: 1"
Specification
CAM 100 | |||||||||||||
Modelo | I [A] | P1 | P2 | Q | |||||||||
1 ~ 230V | 3 ~ 230V | 3 ~ 400V | [kW] | [kW] | [HP] | l/min 0 | 10 | 20 | 30 | 40 | 50 | 60 | |
m 3 /h 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | |||||||
H [m] | |||||||||||||
CAM 100 | 4.7 | - | - | 1.02 | 0.74 | 1.00 | 47 | 42 | 37 | 32 | 26.7 | 10 |
Documents
For more information, see the Catalog and Instruction Manual
