PEDROLLO surface water pumps - JSW 3

Product Name	Price	Delivery	Qty
JSWm 3CL Cód.PED1100203	€675.00 €581.00
JSWm 3CM Cód.PED1100204	€675.00 €581.00
JSW 3CL Cód.PED1100252	€692.00 €595.00
JSW 3CM Cód.PED1100253	€692.00 €595.00
JSWm 3BH Cód.PED1100205	€695.00 €598.00
JSW 3BH Cód.PED1100255	€709.00 €610.00
JSW 3AH Cód.PED1100254	€756.00 €650.00

Product Description

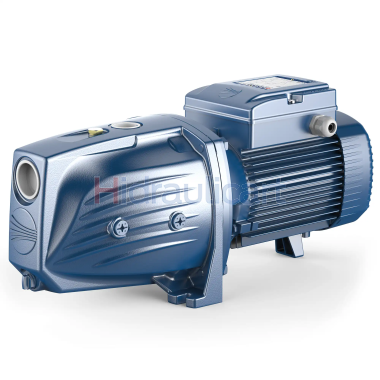

Feature - JSW 3 ELECTRIC PUMP

JSW self-priming electric pumps are designed to extract water and liquids containing air. They are reliable and easy to operate. They are suitable for domestic use, particularly for distributing water to small and medium-sized tanks and for irrigation.

Centrifugal electric pump;
Noryl turbines (Except marked models);
Electric motor with built-in thermal protection at 240V ;
Automatic hardware;
Maximum suction 9m ;;
Came in stainless steel;
Maximum fluid and ambient temperature 40ºC ;
IPX4 .

Model	Volts	HP	Amp	Asp. and Exit	MCA	L/H
JSWm 3CL	240	1.5	7.8	1.1/4 " x 1	14-39	9600-1800
JSW 3CL	400	1.5	3	1.1/4 " x 1	14-39	9600-1800
JSWm 3CM	240	1.5	7.8	1.1/4 " x 1	20-46	7200-1200
JSW 3CM	400	1.5	3	1.1/4 " x 1	20-46	7200-1200
JSWm 3BH	240	2	8.2	1.1/4 " x 1	38-68	4800-600
JSW 3BH	400	2	3.5	1.1/4 " x 1	38-68	4800-600
JSW3 AH	400	3	5.1	1.1/4 " x 1	52-88	4800-600

Specification

Model	Engine	FLOW RATE L/min
Model	HP	5	10	15	20	25	30	35	40	50	60	70	80	100	120	140	200
JSW3CL	1.5	-	40	39	38	37	36	35	34	32	30	28	26	23	20	17	15
JSW3CM	1.5	-	50	48	45	44	43	40	38	35	32	29	27	23	20	-	-
JSW3BH	2	-	70	67	64	61	58	55.5	53	49	45	41	39	-	-	-	-
JSW3AH	3	-	90	86	82	79	75	71.5	69	64	58	54	50	-	-	-	-
