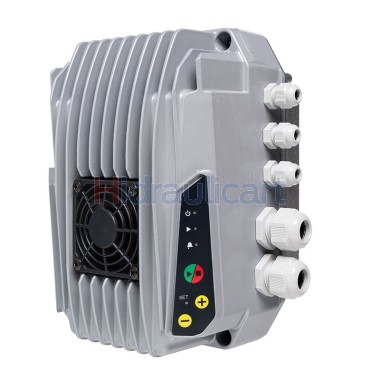

NASTEC MIDA Intelligent Variable Speed Drive

MIDA variable speed drive is a new generation of NASTEC inverters for coupling to the motor or wall installation, manufactured by NASTEC , specially designed to control and protect pumping systems based on the speed variation of electric pumps.

The MIDA inverter guarantees:
Energy savings due to speed control;
Smooth start and stop;
System durability and reliability;
Simplified installation on the engine or on the wall;
Quick and easy commissioning with initial setup wizard;
Installation possible in humid and dusty environments due to the IP55 (NEMA 4) protection rating;
High thermal and mechanical performance thanks to the aluminum casing and independent ventilation.

Improved usability via:
Monitoring and programming via your smartphone and the Nastec NOW application available for Android , IOS and Windows Mobile ;
Remote control using a nearby smartphone as a modem;
Save and load schedules;
Possibility of sending reports by email;
Multi-Language Support.

Various control modes:
Constant pressure;
Constant or proportional differential pressure;
Constant temperature;
Constant differential temperature;
Constant flow;
External frequency control (trimmer) or 1 or 2 pre-set frequencies.

Integrated protection against:
Under or Under voltage;
Under or Under Voltage;
Dry running;
Excessive temperature.

Multi-Bomb Operation (COMBO):
Parallel connection of up to 8 pumps;
Alternation for even pump wear;
In the event of a pump failure, operation is automatically ensured by the remaining pumps.

Advanced engine control:
Control of the next generation of asynchronous motors;
Control of permanent magnet synchronous motors.

EMC Compatibility for Residential Environment:
Integrated PFC (PF 1) according to EN61000-3-2.
Integrated input filter for Category C1 EN61800-3),
Class B (EN55011).
