Espa Tiper 15 Hydromassage Pump

VER PREÇO / COMPRAR
Espa
Product Name Price Delivery Expedição
Espa Tiper 15-1M Whirlpool Pump
Cód.ESP720040
€198.00

Out of stock

Espa Tiper 15-3M Whirlpool Pump
Cód.ESP720050
€202.00

Out of stock

Product Description

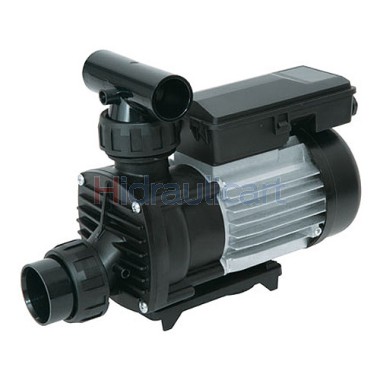

Compact single-cell centrifugal pumps, designed for water recirculation in hydromassage systems. With total emptying device to avoid residual liquid retention in each cycle. Built-in thermal protector and total insulation greater than 3750 V. Collar suction fitting for pipes with an outer diameter of 50 mm, or for clamps for 58 mm pipes. Double outlet compression fitting for pipes with an internal diameter of 25 mm, using clamps. Maximum fluid temperature of 50 ºC.

Materials:
Pump body, pump foot and diffuser in technopolymer.
Technopolymer sealing support.
AISI 420 stainless steel motor shaft.
Mechanical seal in graphite and alumina.
Aluminum motor housing.
Gaskets in NBR.

Motor:
Asynchronous, two poles
IP 55 protection
Class F insulation
Continuous service
Single-phase version with built-in thermal protector.
