Product Name | Price | Delivery | Qty |
---|---|---|---|
Hydraulic E-Tech VS 15/8 Cód.ETEHVS-15.08 |
€256.90
|
||
Hydraulic E-Tech VS 15/10 Cód.ETEHVS-15.10 |
€293.40
|
||
Hydraulic E-Tech VS 15/11 Cód.ETEHVS-15.11 |
€320.45
|
||
Hydraulic E-Tech VS 15/12 Cód.ETEHVS-15.12 |
€341.75
|
||
Hydraulic E-Tech VS 15/13 Cód.ETEHVS-15.13 |
€363.60
|
||
Hydraulic E-Tech VS 15/15 Cód.ETEHVS-15.15 |
€419.20
|
||
Hydraulic E-Tech VS 15/16 Cód.ETEHVS-15.16 |
€448.35
|
||
E-Tech VS 15/20 Hydraulic Cód.ETEHVS-15.20 |
€585.85
|
||
Hydraulic E-Tech VS 15/21 Cód.ETEHVS-15.21 |
€618.75
|
||
Hydraulic E-Tech VS 15/28 Cód.ETEHVS-15.28 |
€669.95
|
Product Description

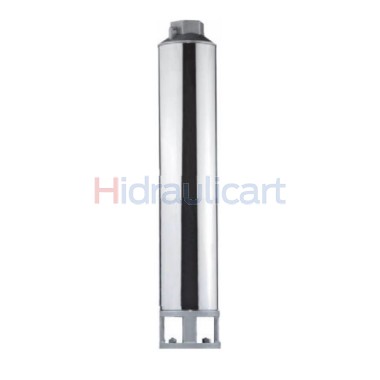

Hydraulic Part (Without Motor - see motors here )
E-Tech is a registered trademark of Franklin Electric and is used for its range of high-quality stainless steel pumps. The manufacture and creation of this equipment takes place in Italy at Vertical SPA, a company that stands out for its high specialization in the manufacture of components for the pumping industry worldwide. E-Tech pumps are renowned for their reliability and performance.
Features
Body: AISI 304 stainless steel
Polycarbonate floating impellers
Motor coupling flange according to NEMA standard
Specification
VE 94 | |||||||||||||||||||||
Model | I [A] | P2 | Q | ||||||||||||||||||
1 ~ 230V | 3 ~ 400V | [kW] | [HP] | l/min 0 | 150 | 168 | 186 | 198 | 216 | 234 | 252 | 264 | 282 | 300 | 318 | 336 | 348 | 366 | 385 | 402 | |
m 3 /h 0 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | |||||
H [m] | |||||||||||||||||||||
VS 15/8 | - | 5.6 | 2.2 | 3.0 | 46 | 36 | 35 | 33 | 32 | 30 | 29 | 27 | 26 | 25 | 23 | 21 | 20 | 18 | 15 | 13 | 10 |
VS 15/10 | - | 7.5 | 3.0 | 4 | 58 | 45 | 43 | 41 | 40 | 38 | 36 | 34 | 33 | 30 | 29 | 27 | 24 | 22 | 19 | 16 | 13 |
VS 15/10 | - | 7.5 | 3.0 | 4 | 63 | 48 | 45 | 43 | 41 | 39 | 37 | 35 | 33 | 30 | 28 | 26 | 24 | 21 | 18 | 15 | 11 |
VS 15/12 | - | 9.8 | 4 | 5.5 | 69 | 54 | 52 | 50 | 48 | 45 | 43 | 41 | 39 | 37 | 35 | 32 | 30 | 26 | 23 | 20 | 16 |
VS 15/13 | - | 9.8 | 4 | 5.5 | 75 | 61 | 56 | 53 | 50 | 47 | 45 | 42 | 40 | 38 | 36 | 33 | 30 | 26 | 22 | 18 | 13 |
VS 15/15 | - | 9.8 | 4 | 5.5 | 87 | 72 | 66 | 61 | 58 | 55 | 52 | 49 | 47 | 45 | 42 | 39 | 35 | 31 | 26 | 21 | 15 |
VS 15/16 | - | 12.5 | 5.5 | 7.5 | 92 | 73 | 69 | 66 | 63 | 60 | 58 | 55 | 52 | 49 | 46 | 43 | 39 | 35 | 31 | 26 | 21 |
VS 15/20 | - | 12.5 | 5.5 | 7.5 | 121 | 98 | 92 | 86 | 81 | 76 | 71 | 67 | 62 | 58 | 54 | 50 | 45 | 40 | 34 | 27 | 18 |
VS 15/21 | - | 16.9 | 7.5 | 10 | 121 | 95 | 9187 | 87 | 84 | 80 | 75 | 72 | 68 | 64 | 60 | 56 | 51 | 46 | 40 | 35 | 27 |
VS 15/28 | - | 16.9 | 7.5 | 10 | 165 | 130 | 121 | 112 | 105 | 98 | 92 | 86 | 80 | 74 | 68 | 62 | 56 | 49 | 42 | 34 | 25 |
