Product Name | Price | Delivery | Qty |
---|---|---|---|
E-Tech VS 4/4 Hydraulic Cód.ETEHVS-04.04 |
€134.70
|
||
E-Tech VS 4/7 Hydraulic Cód.ETEHVS-04.07 |
€150.85
|
||
E-Tech VS 4/9 Hydraulic Cód.ETEHVS-04.09 |
€153.65
|
||
Hydraulic E-Tech VS 4/10 Cód.ETEHVS-04.10 |
€163.20
|
||
E-Tech VS 4/14 Hydraulic Cód.ETEHVS-04.14 |
€185.10
|
||
E-Tech VS 4/18 Hydraulic Cód.ETEHVS-04.18 |
€207.05
|
||
E-Tech VS 4/27 Hydraulic Cód.ETEHVS-04.27 |
€268.55
|
||
E-Tech VS 4/32 Hydraulic Cód.ETEHVS-04.32 |
€311.65
|
||
E-Tech VS 4/40 Hydraulic Cód.ETEHVS-04.40 |
€357.05
|
||
E-Tech VS 4/44 Hydraulic Cód.ETEHVS-04.44 |
€379.65
|
Product Description

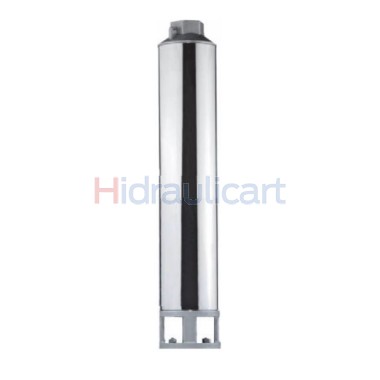

Hydraulic Part (Without Motor - see motors here )
E-Tech is a registered trademark of Franklin Electric and is used for its range of high-quality stainless steel pumps. The manufacture and creation of this equipment takes place in Italy at Vertical SPA, a company that stands out for its high specialization in the manufacture of components for the pumping industry worldwide. E-Tech pumps are known for their reliability and performance.
Features
Body: AISI 304 stainless steel
Polycarbonate floating impellers
Motor coupling flange according to NEMA standard
Specification
VE 94 | ||||||||||||||
Model | I [A] | P2 | Q | |||||||||||
1 ~ 230V | 3 ~ 400V | [kW] | [HP] | l/min 0 | 19.8 | 25.2 | 30 | 34.8 | 40.2 | 45 | 49.8 | 55.2 | 60 | |
m 3 /h 0 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | |||||
H [m] | ||||||||||||||
VS 2/5 | 3.5 | 1.35 | 0.37 | 0.5 | 34 | 30 | 29 | 27 | 25 | 22 | 18 | 14 | 10 | 4 |
VS 2/7 | 3.5 | 1.35 | 0.37 | 0.5 | 45 | 43 | 40 | 37 | 35 | 30 | 25 | 20 | 14 | 6.6 |
VS 2/10 | 4.7 | 1.85 | 0.55 | 0.75 | 67 | 60 | 57 | 54 | 49 | 43 | 36 | 28 | 20 | 10 |
VS 2/14 | 5.8 | 2.20 | 0.75 | 1 | 94 | 85 | 80 | 75 | 68 | 60 | 50 | 39 | 27 | 14 |
VS 2/20 | 8.6 | 3 | 1.1 | 1.5 | 133 | 120 | 114 | 107 | 97 | 86 | 72 | 56 | 40 | 17 |
VS 2/27 | 10.7 | 4.1 | 1.5 | 2 | 189 | 164 | 154 | 145 | 132 | 115 | 97 | 75 | 53 | 20 |
VS 2/39 | - | 5.60 | 2.2 | 3 | 259 | 235 | 222 | 209 | 190 | 167 | 140 | 110 | 75 | 23 |
