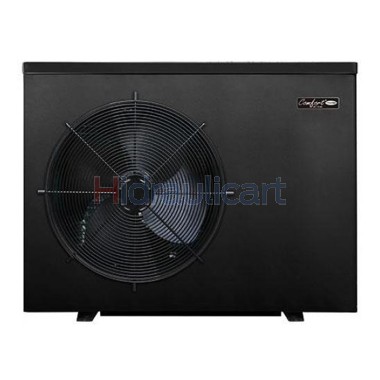

Comfort Line heat pump

Product Name	Price	Delivery	Qty
WIFI module Cód.ECO8459000	€150.00
Comfort Line 30 m3 Cód.ECO811135009	€1,783.50 €1,426.00
Comfort Line 45 m3 Cód.ECO811135006	€2,375.00 €1,899.00
Comfort Line 60 m3 Cód.ECO811135010	€3,247.00 €2,597.00
Comfort Line 75 m3 Cód.ECO811135011	€3,911.00 €3,130.00

Product Description

Comfort Line

Extend your swimming season, enjoy comfortable swimming all year round!

Fairland 's Comfort Line heat pump range is the latest addition to this leading manufacturer's product range.
Powered by an inverter compressor, these heat pumps can intelligently adjust their heating capacity from 20% to 100% according to different needs.
When you start heating your pool water, the Comfort Line heat pump operates at 100% compressor and fan capacity for rapid heating. When the desired temperature level is reached, the Comfort Line pump operates at a lower heating capacity to maximize the coefficient of performance (COP) and your savings.

Highlights

Up to 7 times quieter than the competition when maintaining water temperature.
Spiral titanium exchanger, 30% larger heat exchange surface with water.
HP-BOOSTER technology, allowing a COP up to 20% higher than other conventional pumps.
Special four-way valve that allows accelerated defrosting.

TECHNICAL CHARACTERISTICS
MODELS		BPN07	BPN09	BPN13	BPN17
PERFORMANCE: AIR 26ºC / WATER 26ºC / HUMIDITY 70%
POWER DELIVERED*	kW	7	9	12.5	16
COP		10.3 - 6.6	10.6 - 6.8	11.6 - 7.0	11.2 - 7.1
PERFORMANCE: AIR 15ºC / WATER 26ºC / HUMIDITY 70%
POWER DELIVERED	kW	5	6.3	8.5	11
ABSORBED POWER	kW	0.29 - 1.04	0.36 - 1.4	0.47 - 1.78	0.59 - 2.34
COP		6 - 4.8	6.1 - 4.5	6.3 - 4.8	6.4 - 4.7
TECHNICAL CHARACTERISTICS
MAXIMUM POOL VOLUME	m ³	30	45	60	75
RECOMMENDED AVERAGE FLOW RATE	m ³ /H	3	4	6	7
HYDRAULIC CONNECTION		Ø50
POWER SUPPLY		230V/1/50Hz
NOMINAL ABSORBED INTENSITY	THE	4.4	7.0	8.7	11.7
MAXIMUM ABSORBED INTENSITY	THE	6.5	9.5	12.5	15
Recommended power cord size*		3 x 1.5		3 x 2.5	3 x 4
REFRIGERANT FLUID AMOUNT	Kg	0.55	0.8	1	1.3
ACOUSTIC PRESSURE AT 10m**	dB(A)	31.2	32.5	33	36.3
DIMENSIONS	mm	744x349x648	864x349x648	864x349x648	954x349x648
