Astralpool PRO-ELYO heat pump

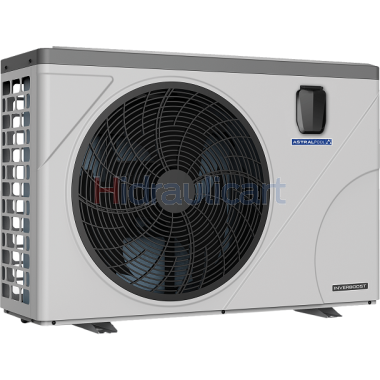

Astralpool PRO-ELYO heat pump

VER PREÇO / COMPRAR

Product Name	Price	Delivery	Qty
PRO ELYO TOUCH - PET 8 kW Cód.ASTR74166	€2,419.41 €1,887.14
PRO ELYO TOUCH - PET 10 kW Cód.ASTR74167	€2,910.18 €2,269.94
PRO ELYO TOUCH - PET 13 kW Cód.ASTR74168	€3,301.32 €2,575.03
PRO ELYO TOUCH - PET 15 kW Cód.ASTR74169	€3,967.98 €3,095.02
PRO ELYO TOUCH - PET 19 kW Cód.ASTR74170	€4,917.54 €3,850.00
PRO ELYO TOUCH - PET 30T KW-R410A Cód.ASTR74174	€7,566.96 €5,676.00
PRO ELYO TOUCH - PET 30 kW Cód.ASTR74172	€7,377.54 €5,828.26
PRO ELYO TOUCH - PET 35 kW Cód.ASTR74173	€8,534.97 €6,402.00
PRO ELYO TOUCH - PET 35T KW-R410A Cód.ASTR74175	€8,724.39 €6,544.00

Product Description

PRO ELYO TOUCH FULL INVERTER TECHNOLOGY

Full Inverter Technology - silent and economical
Inverter technology allows the heat pump to adapt its power depending on the temperature of the pool water and weather conditions.
It therefore offers the best energy efficiency at an extremely low sound level.
8 power levels from 8,5 kW to 35 kW for small and large pools: over 200 m3 *
Minimum operating outside air temperature - -20 °C

- FULL INVERTER TECHNOLOGY -

3 OPERATING MODES

Silent - ideal for maintaining temperature or for operating at night;
The heat pump operates at low speed;
The compressor operates at low speed to reduce energy consumption;
Low sound level and high COP ;
Smart - intelligent operation;
The compressor works intelligently, at low and high speeds;
Automatic and ideal regulation of the sound level as well as energy consumption according to the power requirement;
Powerful - ideal at the beginning of the season or in case of low outside temperatures;
The heat pump operates at high speed;
The compressor runs at high speed to heat the pool more quickly;
Maximum heating power.

Technical description

Full Inverter technology - silent and economical;
8 power levels from 8,5 kW to 35 kW* ;
Works at ambient temperatures down to -20°C ;
*Temperature conditions of 28 °C Air / 28 °C Water;

Technical characteristics

New LED touch monitor;
Heating priority mode (filtration pump control) ;
ABS plastic body with new injected ventilation ice; galvanized steel protection grid around the evaporator;
Variable speed DC fan;
Automatic cooling mode;
Automatic defrosting;
HP and LP pressure safety switch;
Water flow switch;
Titanium water exchanger;
Compressor Inverter Rotary ;
Electronic expansion valve.

Accessories included

1 x Winter cover.
4 x Anti-vibration feet.
Condensate drainage Kit .
1 x 10 m Modbus cable ( to connect the heat pump to the Connect Box ) ;
2 x PVC fittings 1/2 union Ø 50 .

TECHNICAL CHARACTERISTICS
ELYO TOUCH PRO MODELS		PET-08	PET-10	PET-13	PET-15	PET-19	PET-25	PET-30	PET-35	PET-30T	PET-35T
PERFORMANCE: AIR 28ºC / WATER 28ºC / HUMIDITY 80%
POWER DELIVERED	kW	8.5 - 3.1	10.5 - 2.3	13.5 - 3	15.9 - 3	19.8 - 3.8	25.5 -4.7	30 - 6	35 - 8	30 - 6	35 - 8
ABSORBED POWER	kW	1.5 - 0.2	1.7 - 0.15	2.2 -0.2	2.6 - 0.2	3.3 - 0.25	4.2 - 0.3	5 - 0.35	5.9 - 0.5	5 - 0.35	5.9 - 0.5
COP		5.8 - 15	6.2 - 16	6 - 16
PERFORMANCE: AIR 15ºC / WATER 26ºC / HUMIDITY 70%
POWER DELIVERED	kW	6 - 2.5	7.5 - 2	9 - 2	11 - 2.5	13 - 3	17 - 4	21 - 5.5	25 - 5.5	21 - 5.5	25 - 5.5
ABSORBED POWER	kW	1.4 - 0.3	1.75 - 0.25	2 - 0.25	2.5 - 0.3	2.9 - 0.4	3.9 - 0.5	4.6 - 0.7	5.4 - 0.7	4.6 - 0.7	5.4 - 0.7
COP		4.5 - 8
TECHNICAL CHARACTERISTICS
MAXIMUM POOL VOLUME	m3	Perform thermal study
AVERAGE FLOW RATE	m3/H	4	5	6	7	8	10	13
HYDRAULIC CONNECTION	mm	PVC 1/2 Ø50
POWER SUPPLY		220*240V / 1 / 50 or 60Hz								380 V / 3 /50 or 60 Hz
ACOUSTIC PRESSURE AT 10m	dB(A)	21 - 34	22 - 35	22 - 35	23 - 37	23 - 37	24 - 39	26 - 44	26 - 44	26 - 44	26 - 44
DIMENSIONS	mm	577X1008X380	709X1050X440				870X1050X450	1285X1050X460
REFRIGERANT GAS		R32								R410A
WEIGHT	Kg	56	68	73	78	98	117	128	130	128	130
NUMBER OF FANS		1						2
