Product Description

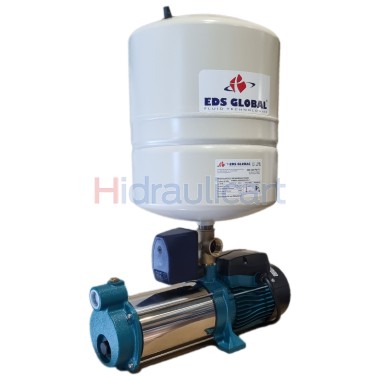

Network pressurization system consisting of:
- 1 - Self-Priming Multistage Pump, 230V, 1.50CV
- 1 - 36L Autoclave
- 1 - Record 5 ways
- 1 - Pressure switch
- 1 - Pressure gauge 0-10 kg/cm2
Group functioning
The hydropnematic group performs the starting and stopping system through the pressure switch. As soon as water is consumed, the first supply is made from the autoclave. When the pressure drops to the start setting level, the pump starts to work. The pump stops automatically as soon as it reaches the stop pressure, which was set on the pressure switch.
This system is supplied with a horizontal multistage self-priming centrifugal electropump, silent and with excellent performance, suitable for domestic and industrial applications, pressure groups and irrigation systems.
Operation
Self-Priming.
Fluid: Clean waters and non-aggressive or viscous liquids, free of solid substances.
Maximum fluid temperature: 40 ºC
Maximum suction height: 8 m
Construction features
Suction body: Cast iron
Thrust body: Cast iron
Impellers: Reinforced PPO
Diffusers: Reinforced PPO
Outer housing: AISI 304 stainless steel
Motor shaft: AISI 304 stainless steel
Mechanical seal: Carbon/Graphite
Electric Motor
Two-pole induction type, closed and self-ventilated, suitable for continuous operation, with IPX4 degree of protection and class F insulation. Single-phase 230V - 50Hz with permanent capacitor or three-phase 400V - 50 Hz. The motors must be thermally protected by the user .
Connections
Suction: 1"
Compression: 1"
Note: For the pressurization groups to function correctly, they must be equipped with a suction check valve (positive suction) or fishing valve (negative suction).
*The components of this kit are supplied in separate packaging.
Specification
ACS | |||||||||||
Model | Q | ||||||||||
l/min 0 | 10 | 20 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | |
m3 /h0 | 0.6 | 1.2 | 2.1 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | 6-9 | |
H [m] | |||||||||||
5ACSm100S | 55 | 54 | 52 | 49 | 45 | 40 | 35 | 29 | 22.5 | 15 | 8 |
Documents
For more information, see the Technical Data Sheet
