| Product Name | Price | Delivery | Qty |
|---|---|---|---|
| GRUNDFOS SQ 5-15 Cód.GRU96510211 |
€803.00 €589.00 |
||
| GRUNDFOS SQ 5-25 Cód.GRU96510212 |
€821.00 €603.00 |
||
| GRUNDFOS SQ5-35 Cód.GRU96510213 |
€994.00 €730.00 |
||
| GRUNDFOS SQ5-50 Cód.GRU96510214 |
€1,112.00 €816.00 |
||
| GRUNDFOS SQ 5-35 (Cabo 15m) Cód.GRU96524441 |
€1,117.00 €820.00 |
||
| GRUNDFOS SQ 5-35 (Cabo 30m) Cód.GRU96160956 |
€1,197.00 €879.00 |
||
| GRUNDFOS SQ 5-50 (Cabo 15m) Cód.GRU96524449 |
€1,237.00 €908.00 |
||
| GRUNDFOS SQ5-60 Cód.GRU96510215 |
€1,429.00 €1,049.00 |
||
| GRUNDFOS SQ5-70 Cód.GRU96510217 |
€1,476.00 €1,084.00 |
||
| GRUNDFOS SQ 5-60 (Cabo 30m) Cód.GRU96524451 |
€1,634.00 €1,200.00 |
||
| GRUNDFOS SQ 5-70 (Cabo 30m) Cód.GRU96524452 |
€1,682.00 €1,235.00 |
Product Description

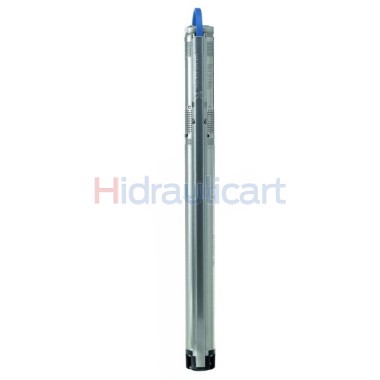

Grundfos 3” SQ5 pumps are submersible pumps offering a wide range of performance, designed for continuous or intermittent operation in a variety of applications. Thanks to their compact dimensions, they can be installed in small diameter holes. SQ pumps can also be installed in a horizontal position, and the use of a cooling jacket is recommended for this purpose. Pump with built-in check valve.
Characteristics
Body and shaft - AISI 304 stainless steel
Motor with permanent magnet rotor.
Floating impellers concept.
Check valve with built-in spring.
Supplied with a 15 m or 30 m cable, depending on the model.
Supply voltage - 1 X 240 V, 50 Hz
Tolerance voltage -10% / +6%
Start/stop - Progressive
Hole diameter 76 mm minimum
Maximum flow - 5 m3 /h
Maximum operating pressure - 10 bar
Liquid temperature - + 2°C to +20°C
Pumped liquids - pH 5 to 9.
Quantity of sand - 50 g/m3 maximum
Benefits
Easy to handle and transport, small hole diameter.
Optimized electrical consumption, excellent hydraulic performance and guarantee of an installation protected against water hammer.
Integrated protections - Protections for dry running, overheating, motor overload, undervoltage and overvoltage, axial pressure, check valve.
Specification
| CARACTERÍSTICAS TÉCNICAS | ||||
| MODELOS | P2 (kW) | I [A] | Altura Nominal [m] | Cuadal nominal [m3/h] |
| SQ 5-15 | 0.7 | 2.7 | 11 | 5 |
| SQ 5-25 | 0.7 | 4.7 | 23 | 5 |
| SQ 5-35 | 1.15 | 6.5 | 36 | 5 |
| SQ 5-50 | 1.55 | 8.7 | 48 | 5 |
| SQ 5-60 | 1.55 | 10.6 | 61 | 5 |
| SQ 5-70 | 1.85 | 12 | 73 | 5 |
-
