| Product Name | Price | Delivery | Qty |
|---|---|---|---|
| GRUNDFOS SQ3-30 Cód.GRU96510204 |
€812.00 €596.00 |
||
| GRUNDFOS SQ3-40 Cód.GRU96510205 |
€859.00 €630.00 |
||
| GRUNDFOS SQ3-55 Cód.GRU96510206 |
€994.00 €730.00 |
||
| GRUNDFOS SQ 3-40 (Cabo 30m) Cód.GRU96524427 |
€1,065.00 €782.00 |
||
| GRUNDFOS SQ3-65 Cód.GRU96510207 |
€1,112.00 €816.00 |
||
| GRUNDFOS SQ 3-55 (Cabo 15m) Cód.GRU96524437 |
€1,117.00 €820.00 |
||
| GRUNDFOS SQ 3-65 (Cabo 30m) Cód.GRU96524439 |
€1,318.00 €968.00 |
||
| GRUNDFOS SQ3-80 Cód.GRU96510208 |
€1,379.00 €1,012.00 |
||
| GRUNDFOS SQ3-95 Cód.GRU96510209 |
€1,429.00 €1,049.00 |
||
| GRUNDFOS SQ3-105 Cód.GRU96510210 |
€1,479.00 €1,086.00 |
||
| GRUNDFOS SQ 3-80 (Cabo 30m) Cód.GRU96524445 |
€1,585.00 €1,164.00 |
||
| GRUNDFOS SQ 3-95 (Cabo 70m) Cód.GRU96524447 |
€1,772.00 €1,301.00 |
||
| GRUNDFOS SQ 3-105 (Cabo 80m) Cód.GRU96524448 |
€2,005.00 €1,472.00 |
Product Description

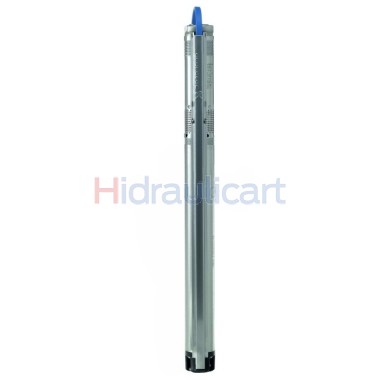

SQ3 Grundfos pumps are submersible pumps offering a wide range of performance, designed for continuous or intermittent operation in a variety of applications. Thanks to their compact dimensions, they can be installed in small diameter holes. SQ pumps can also be installed in a horizontal position, and the use of a cooling jacket is recommended for this purpose. Pump with built-in check valve.
Characteristics
Body and shaft - AISI 304 stainless steel
Motor with permanent magnet rotor.
Floating impellers concept.
Check valve with built-in spring.
Supplied with a 1.5 m or 3.0 m cable, depending on the model.
Supply voltage - 1 X 240 V, 50 Hz
Tolerance voltage -10% / +6%
Start/stop - Progressive
Hole diameter 76 mm minimum
Maximum flow - 3 m3 /h
Maximum operating pressure - 10 bar
Liquid temperature - + 2°C to +20°C
Pumped liquids - pH 5 to 9.
Quantity of sand - 50 g/m3 maximum
Benefits
Easy to handle and transport, small hole diameter.
Optimized electrical consumption, excellent hydraulic performance and guarantee of an installation protected against water hammer.
Integrated protections - Protections for dry running, overheating, motor overload, undervoltage and overvoltage, axial pressure, check valve.
Specification
| CARACTERÍSTICAS TÉCNICAS | ||||
| MODELOS | P2 (kW) | I [A] | Altura Nominal [m] | Cuadal nominal [m3/h] |
| SQ 3-30 | 0.7 | 3.6 | 26 | 3 |
| SQ 3-40 | 0.7 | 5.1 | 42 | 3 |
| SQ 3-55 | 1.15 | 6.3 | 56 | 3 |
| SQ 3-65 | 1.15 | 7.8 | 70 | 3 |
| SQ 3-80 | 1.55 | 9.3 | 84 | 3 |
| SQ 3-95 | 1.55 | 10.7 | 98 | 3 |
| SQ 3-105 | 1.85 | 11.7 | 113 | 3 |
-
