| Product Name | Price | Delivery | Qty |
|---|---|---|---|
| GRUNDFOS SQ1-35 Cód.GRU96510178 |
€817.00 €600.00 |
||
| GRUNDFOS SQ1-65 Cód.GRU96510190 |
€950.00 €697.00 |
||
| GRUNDFOS SQ 1-65 (Cabo 30m) Cód.GRU96524421 |
€1,121.00 €823.00 |
||
| GRUNDFOS SQ1-80 Cód.GRU96510191 |
€1,147.00 €842.00 |
||
| GRUNDFOS SQ1-95 Cód.GRU96510192 |
€1,194.00 €876.00 |
||
| GRUNDFOS SQ1-110 Cód.GRU96510193 |
€1,241.00 €911.00 |
||
| GRUNDFOS SQ 1-80 (Cabo 30m) Cód.GRU96524428 |
€1,352.00 €993.00 |
||
| GRUNDFOS SQ 1-80 (Cabo 50m) Cód.GRU96524429 |
€1,460.00 €1,072.00 |
||
| GRUNDFOS SQ1-125 Cód.GRU96510194 |
€1,480.00 €1,087.00 |
||
| GRUNDFOS SQ1-140 Cód.GRU96510195 |
€1,529.00 €1,123.00 |
||
| GRUNDFOS SQ1-155 Cód.GRU96510196 |
€1,576.00 €1,157.00 |
Product Description

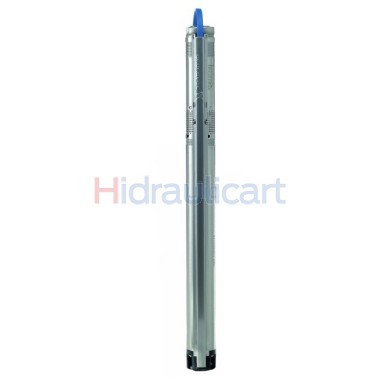

Grundfos SQ1 3” pumps are submersible pumps offering a wide range of performance, designed for continuous or intermittent operation in a variety of applications. Thanks to their compact dimensions, they can be installed in small diameter holes. The SQ pumps can also be installed in a horizontal position, and for this purpose the use of a cooling jacket is recommended. Pump with built-in check valve.
Características
Body and shaft - AISI 304 stainless steel
Motor with permanent magnet rotor.
Concept of floating impellers.
Built-in spring check valve.
Supplied with a 15 m or 30 m cable, depending on the models.
Supply voltage - 1 X 240 V, 50 Hz
Tolerance voltage -10% / +6%
Start/Stop - Progressive
Hole diameter 76 mm minimum
Rated Flow - 1 m3 /h
Maximum operating pressure - 10 bar
Liquid temperature - + 2°C to +20°C
Pumped liquids - pH 5 to 9.
Amount of sand - 50 g/m3 maximum
Vantagens
Easy to handle and carry, small hole diameter.
Optimized electrical consumption, excellent hydraulic performance and guarantee of an installation protected against water hammer.
Integrated protections - Dry running protections, overheating, motor overload, undervoltage and overvoltage, axial pressure, check valve.
Specification
| CARACTERÍSTICAS TÉCNICAS | ||||
| MODELOS | P2 [kW] | I [A] | Altura Nominal [m] | Caudal nominal [m3/h] |
| SQ 1-35 | 0.7 | 2.9 | 34 | 1 |
| SQ 1-50 | 0.7 | 4 | 53 | 1 |
| SQ 1-65 | 0.7 | 5.2 | 72 | 1 |
| SQ 1-80 | 1-15 | 6 | 91 | 1 |
| SQ 1-95 | 1.15 | 7 | 111 | 1 |
| SQ 1-110 | 1.15 | 8.1 | 127 | 1 |
| SQ 1-125 | 1.55 | 9.3 | 135 | 1 |
| SQ 1-140 | 1.55 | 10.3 | 143 | 1 |
| SQ 1-155 | 1.85 | 11 | 151 | 1 |
-
