AQUA XL Wastewater Level Buoy

VER PREÇO / COMPRAR
Product Name Price Delivery Expedição
Int. Buoy AQUA XL 6m
Cód.17463005
€78.72

Out of stock

Int. Buoy AQUA XL 10m
Cód.17463010
€91.02

Out of stock

Int. Buoy AQUA XL 15m
Cód.17463015
€106.52

Out of stock

Product Description

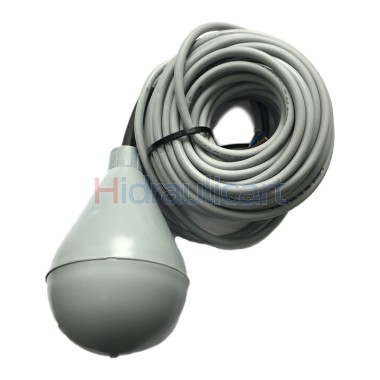

The AQUA XL level float is a certified product for level control in wastewater installations, drainage and pumping equipment in general.

It is designed to solve all wastewater control situations safely and economically.

Modern, resistant and easy to install.

The AQUA XL float is a level regulator / float with internal ballast. As the water level rises or falls, the microswitch inside the float will open or close a circuit connected to an electrical panel. Thanks to its weight (775 g without cable), the AQUA XL is able to break through the layers of grease that are usually formed on the surface of pumping stations. Their shape and texture ensure that impurities do not adhere to the surface, making them perfectly suitable for urban sewage and industrial wastewater.

As they do not include mercury and lead, they are the natural choice for level control in reservoirs, tanks and drinking water cisterns, either for signaling or for starting and stopping pumping groups.

Specification

Características Técnicas

Densidade dos fluídos:  0,9 a 1,05
Pressão máxima: 2 Bar
Temperatura máxima: 70 ºC
Indice de protecção: IP68
Tensão máxima: 250V / 50Hz
Intensidade nominal: 10(4) A
Contacto: prata/níquel
Material do corpo: Polipropileno
Cabo eléctrico: PVC de alta qualidade
Tipo de cabo:  3x0,75mm
Peso de flutuador sem cabo:  775 g
Peso do cabo:  65 g/m
Lastro:  Interno
Comprimento cabo:  6, 10 e 15 m
Dimensões: 165x100 mm

Documents

Para mais informação, consulte a Ficha Técnica
