Product Name	Price	Delivery	Expedição	Qty
TUBA Float Switch, 5 meters Cód.17465100V	€110.00		Imediata

Product Description
Documents

Product Description

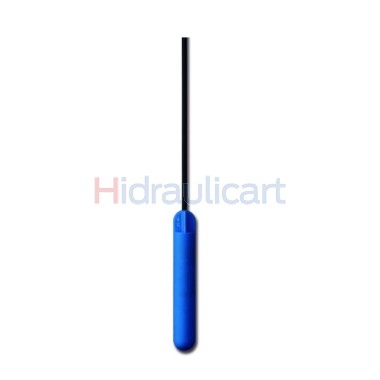

The TUBA 1'' float switch is a tube with a small diameter specifically designed for tanks, cisterns and reservoirs of different volumes. The small diameter of this model (Ø 1") allows it to be introduced through small holes usually found in the side walls of tanks. As the water level increases or decreases, the microswitch inside the float will open or close the electrical circuit. The TUBA 1'' ensures a very accurate level measurement thanks to its differential angle of +/-20º.

Ideal for clean water, rainwater and non-aggressive liquids such as oils and diesel, etc.

Caracterísitcas
Maximum Pressure: 5.5 Bar
Maximum Temperature: 85ºC
Microswitch: 12(6)A 250V
IP: 68
Material: Polypropylene
Switching Angle: +- 20º

Datasheet
