Product Description
The GRAVITY float switch is characterized by its small size, construction and simple installation.
It consists of an external body in polypropylene, and internally equipped with a switch 16A - 250V - 50-60Hz. The electrical terminals are protected by a removable cover equipped with a cable clamp for locking the connection cable.

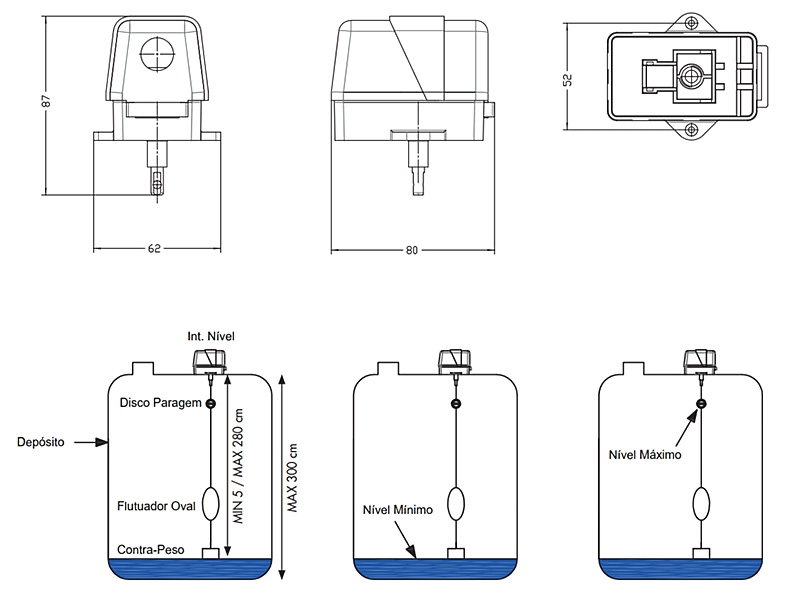

The GRAVITY level switch is particularly suitable for use in clean water tanks, it allows you to adjust the levels by a simple cord equipped with a counterweight, a float and a blocking disk, thus guaranteeing maximum simplicity and versatility of use.
| Service Temperature: | 50°C |
| Storage Temperature: | -20 to 80°C |
| Service Voltage: | 230V ac |
| Maximum switching voltage: | 250V ac |
| Frequency: | 50 - 60 Hz |
| Current with Resistive Load: | 10A |
| Current with Inductive Load: | 4A |
| Micro Switch Electrical Capacity | 16 A |
| Degree of Protection: | IP 56 |
| Polypropylene Rope: | 3 mt |
Specification
| Temperatura de Serviço: | 50 ºC |
| Temperatura de Armazenamento: | -20 a 80 ºC |
| Tensão de Serviço: | 230 V ac |
| Tensão Máxima de comutação: | 250 V ac |
| Frequência: | 50 - 60 Hz |
| Corrente com Carga Resistiva: | 10 A |
| Corrente com Carga Indutiva: | 4 A |
| Capacidade Eléctrica do Micro Interruptor | 16 A |
| Grau de Protecção: | IP 56 |
| Corda em Polipropileno: | 3 mt |
-
