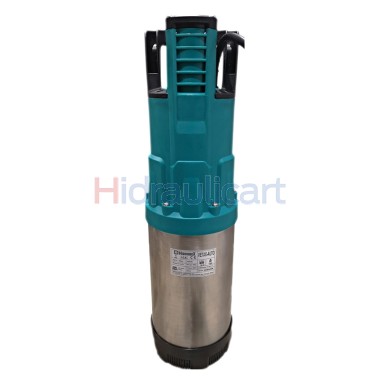

Vetax-Auto Automatic Submersible Electric Pump

Pressure group for automatic water supply for homes, irrigation or other similar applications.

The electronic pressure device installed inside the multicellular submersible electropump controls the automatic starting and stopping of the pump when opening or closing, respectively, any tap, thus obtaining a water network with constant flow and pressure. Integrated water shortage protection system.

Operation
Fluid: Clean, non-aggressive water
Maximum liquid temperature: 35 ºC
Maximum immersion depth: 12 m
Drainage level: 50 mm
Maximum number of starts per hour: 20
Solids passage: 1 mm
Maximum water column height above the electric pump: 15 m

Constructive characteristics
Pump body: Technopolymer with fiberglass
Pump base: Technopolymer with fiberglass
Impeller: Noryl
Motor shaft: Stainless steel
Mechanical seal: Double in oil chamber with seal
External float: With built-in switch
Power cable: 15 m H07RN-F
Output: 1" - 25mm

Electric Motor
Submersible motors with IPX8 degree of protection and class B insulation. Single-phase 230V - 50 Hz with permanently connected capacitor and built-in thermal protector. Excellent engine cooling that allows the pump to operate even partially submerged.
