2-Way Normally Closed Electrovalves Brass

Product Name	Price	Delivery	Qty
Solenoid valve N.Closed - 230VAC - 3/8" Cód.GEN21005	€67.96
Solenoid valve N.Closed - 230VAC - 1/2" Cód.GEN210010	€68.63
N.Closed solenoid valve - 230VAC - 3/4" Cód.GEN210020	€101.66
N.Closed solenoid valve - 230VAC - 1" Cód.GEN210030	€111.65
Solenoid valve N.Closed - 230VAC - 11/4" Cód.GEN210040	€220.71
Solenoid valve N.Closed - 230VAC - 11/2" Cód.GEN210050	€233.63
Solenoid valve N.Closed - 230VAC - 2" Cód.GEN210060	€333.16

Product Description

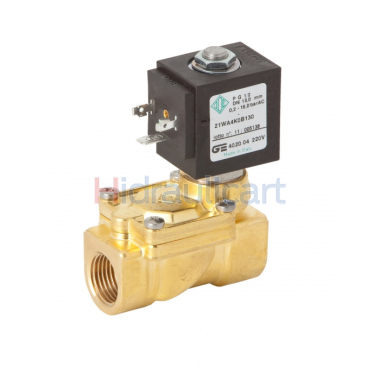

2-way normally closed solenoid valve. Indirect action. UNE-EN 12165 brass body. Stainless steel pilot control. 8W coil. Buna membrane (NBR/Nitrile Butadiene Rubber). Available voltages: 24-220 VAC and 12-24 VDC.

Indirect action solenoid valves for interception of fluids compatible with the materials in which they are built. A minimum pressure of 0.2 Bar is required for its operation. The materials used and the tests they are subjected to guarantee their reliability and durability. Ambient temperature from -10ºC to 60ºC.

Applications: Automation - Heating
Fluids: Water - Air - Inert gases - Mineral Oil
Working pressure: 3/8" to 1", 0.2 to 16 Bar - 11/4" to 2", 0.2 to 10 Bar
Fluid temperature: -10ºC to 90ºC
Connections: 3/8" to 2"
Coil: 8W Ø 13mm - 155 ºC (class F)
