Product Description

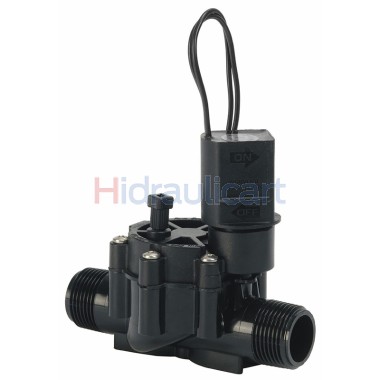

Plastic electrical valves - The Right Choice in Valves.
applications
DV valves are intended for small residential and public irrigation installations.
Characteristics
Online configuration.
Robust PVC construction.
Double filtration: membrane with self-cleaning filter and filter in the solenoid.
Manual opening without water leakage, turning the solenoid 1/4 of a turn.
Bleed screw
“Philips” screws (cross slot) in stainless steel.
Solenoid/piston assembly in one piece.
Debit control.
Solenoid emerged in protective box.
Flow rate: 0.05 to 9.08 m3/h.
Operating pressure: 1 to 10.4 Bar.
Water temperature: up to 43° C
Electrical Specifications
Solenoid 24 V, 50 Hz.
Call current: 0.30 A (7.2 VA)
Maintenance current: 0.19 A (4.6 VA)
Dimensions
Height: 11.4 cm
Length: 11.1 cm
Width: 8.4 cm
Documents
For more information, see the Instruction Manual
