E-Tech by Coverco VS3 - 4.2 m3/h

Zoom

E-Tech by Coverco VS3 - 4.2 m3/h

VER PREÇO / COMPRAR

Product Name	Price	Delivery	Qty
E-Tech-Coverco VS 3/4 pump - 0.50CV - 230V Cód.ETEVS-03.04MC	€435.15 €319.70
E-Tech-Coverco VS 3/4 pump - 0.50CV - 400V Cód.ETEVS-03.04TC	€444.15 €326.30
E-Tech-Coverco VS 3/7 pump - 0.75CV - 230V Cód.ETEVS-03.07MC	€453.45 €333.10
Pump E-Tech-Coverco VS 3/7 - 0.75CV - 400V Cód.ETEVS-03.07TC	€471.00 €346.00
Pump E-Tech-Coverco VS 3/10 - 1.00CV - 230V Cód.ETEVS-03.10MC	€490.85 €360.60
Pump E-Tech-Coverco VS 3/10 - 1.00CV - 400V Cód.ETEVS-03.10TC	€503.55 €369.90
Pump E-Tech-Coverco VS 3/15 - 1.50CV - 230V Cód.ETEVS-03.15MC	€546.30 €401.30
Pump E-Tech-Coverco VS 3/15 - 1.50CV - 400V Cód.ETEVS-03.15TC	€573.65 €421.40
Pump E-Tech-Coverco VS 3/20 - 2.00CV - 230V Cód.ETEVS-03.20MC	€624.70 €458.90
Pump E-Tech-Coverco VS 3/20 - 2.00CV - 400V Cód.ETEVS-03.20TC	€625.10 €459.20
Pump E-Tech-Coverco VS 3/30 - 3.00CV - 400V Cód.ETEVS-03.30TC	€772.75 €567.60
Pump E-Tech-Coverco VS 3/37 - 4.00CV - 400V Cód.ETEVS-03.37TC	€990.85 €727.80

Product Description

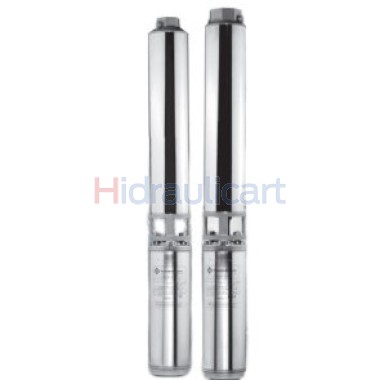

E-Tech by Coverco VS3

E-Tech is a registered trademark of Franklin Electric and is used for the range of high quality stainless steel pumps. The manufacture and design of these products are carried out by Vertical, Spa, a company that stands out for its high specialization in the manufacture of components for the pumping industry worldwide. E-Tech pumps stand out for their reliability and performance, used by the main manufacturers and distributors of pumping equipment in agricultural, industrial and residential applications.

E-Tech by Franklin pumps for 4" boreholes for civil, agricultural and industrial applications. E-Tech pumps consist of a multi-stage hydraulic unit coupled to a submersible motor. Particularly suitable for use in artesian boreholes with Ø 4" ( 100 mm ).

Engine Single-phase version: 230V 50Hz 2 poles ( 2850 rpm);
Three-phase version: 400V 50Hz 2 poles ( 2850 rpm);
Overload protection must be provided by means of a control panel provided by the user;
Maximum number of equally distributed hourly starts: 20 .

Features

High-efficiency hydraulic body that provides maximum performance and minimum energy consumption;
Incorporates a check valve to protect the pump from water hammer;
Compact, reliable, lightweight design suitable for continuous work in horizontal or vertical position;
Stainless steel thrust outlet and motor adapter to improve rigidity and durability;
Outer jacket in AISI 304 stainless steel that ensures perfect alignment of its components, increasing its useful life and avoiding operating problems.

Operating Conditions

Clean liquids, without abrasive or solid bodies;
Maximum manometric head: 245 m ;
Maximum flow rate 4,2 m3/h ;
Outlet diameter: 1¼" ;
Maximum temperature of pumped liquid 40 ºC .

Specification

Model	I [A]		P2		Q
	1 ~ 230V	3 ~ 400V	[kW]	[HP]	l/min 0	19.8	90	108	126	144	162	180	198	216	252
					m ³ /h 0	1.2	1.5	1.8	2.1	2.4	2.7	3	3.3	3.6	4.2
					H [m]
VS 3/4	3.9	1.35	0.37	0.5	30	27	26	25	24	23	21	20	18	16	12
VS 3/7	5.1	1.85	0.55	0.75	50	42	41	39	38	36	34	31	28	25	18
VS 3/10	6.4	2.2	0.75	1	68	60	58	56	54	53	48	44	40	35	27
VS 3/15	8.3	3	1.1	1.5	100	92	89	86	78	75	72	63	58	52	33
VS 3/20	10.4	4.1	1.5	2	133	119	118	115	107	98	95	84	73	66	50
VS 3/30	-	5.6	2.2	3	199	183	174	169	160	151	138	125	110	98	67
VS 3/37	-	7.5	3.3	4	245	225	219	211	202	184	174	157	139	127	81
