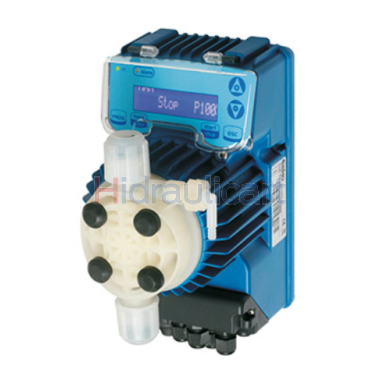

Seko TPG Digital Dosing Pump PVDF kit

Note: model with PVDF installation kit

PVDF installation kit, in addition to the PVDF pump body, the NHH version is supplied with a suction valve, injection valve and PVDF connectors.

Advantages of the PVDF kit over the PVC kit:
- Suitable for high purity applications;
- More resistant over the years;
- Lower roughness;
- Resistant to a wider range of chemicals;
- Less fragility;
- Greater resistance to high pressures.

Analog electromagnetic dosing pump used for dosing chemical products in swimming pools, drinking water treatment, water treatment in cooling towers, boilers and industrial processes. This pump is recommended for continuous operation in the treatment of water with solutions of Sodium Hypochlorite, Calcium Hypochlorite and other solutions.

Main features
Constant dosage.
Manually adjustable flow rate.
Proportional flow rate via external analogue 4-20mA or digital signal (e.g. counter).
Pump on indicator LED.
Illuminated display.
Dosage percentage.
Timed function.
Dosage in ppm.
Statistics.
Access password.
Installation Kit (suction valve, injection valve, PVC suction tube and PE compression tube)

Construction features
Pump Body: PVDF
Structure: PP reinforced with fiberglass
Diaphragm: PTFE
Degree of protection: IP65
Voltage: 230V

Connections
4x6mm - TPG 600, TPG 603, TPG 800
8x12mm - TPG 803

For more information, see the Tekna TPG Catalog
