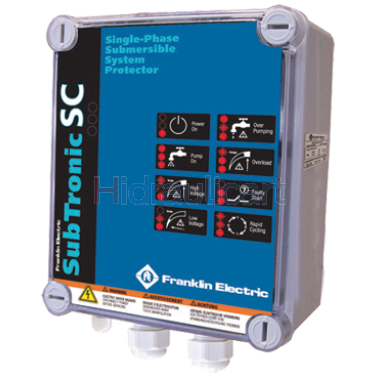

Franklin SubTronic SC 230V Protection Frame

Quadro Digital without the need to use probes for protection and control of electric pumps

The Franklin SubTronic SC range of motor protection panels covers all motors from 0.25 kW to 2.2 kW. Ergonomic design, attention to detail and unique features make the SubTronicSC® range the best choice for submersible motor protection.

Now you can combine Franklin submersible motors with a reliable, easy-to-install Franklin SubTronic SC, protection system.

Product characteristics:

• Attention to detail – Every aspect has been optimized
• The complete solution – The device is 100% compatible with the engine characteristics
• All in one – Reliability guaranteed by the world leader in submersible motors

Ergonomic design:

• Mounting: Easy wall mounting, offering multiple options without reducing the protection index.
• Connections: Reliable connectors for easy connection.

Engine compatible design:

• Compatible Motors: The SubTronic SC® range of enclosures is designed for Franklin Electric motors.
• Wide operating range: Compatibility with the engine type allows for a wide operating range, thus minimizing unnecessary failures.

Intelligent protection and control functions

• Dry running detection (without probes): Prevents motor and pump damage by running the pump without water.
• Dry-running auto-reset: The automatic dry-running reset time for low-flow wells is based on an algorithm that searches for the best operating point. The reset time can vary from 6 to 60 minutes.
• Over-voltage and under-voltage: Prevents motor damage that can be caused by abnormal voltage. Approximate reset time of 3 minutes.
• Over-current Protection: Prevents operation where the motor current exceeds a safe level. This can be caused, for example, by the pump being blocked. Detection is based on current measurement. Reset time approximately 10 minutes.
• Fail-to-Start Protection: Prevents equipment damage due to faulty contacts or switches. No-contact detection is instantaneous.
• Protection from and overload: Prevents equipment damage caused by continuous overload, motor overheating caused by consecutive starts (eg lack of air in the autoclave), faulty contacts or faulty pressure switch.

flags

• Status: Indicates normal or error operation.
• Voltage: Indication of over or under voltage.
• Fault s: Dry running, overcurrent, overload and failure to start.

Technical specifications

Mechanics

• Protection: IP54
• External Dimensions: 290 x 230 x 95 mm
• Weight: 0.6 - 1.0 kg
• Mounting: Wall
• Temperature: -5 °C - +40 °C
• Humidity: 50% at 55°C (non-condensing)

electrical

• Voltage: 220 - 240 V; ± 10%; 50 Hz single phase
• Current: 16 A
• Power: 0.25 - 2.2 kW

Standard

• IEC 60439-1 (with suitable fuses in the network)

Manual SubTronicSC
