Electronic system for protection of Safematic Schuko pumps

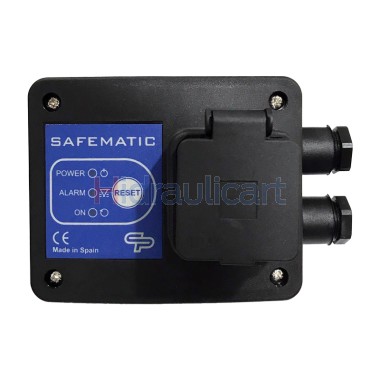

The SAFEMATIC unit protects single-phase electric pumps up to 2.2 kW (3 HP) against dry running, manages overcurrent, and rapid operating cycles (lack of air in the autoclave)

Características:

• LED warning lights, POWER, ALARM and ON (see user manual)
• Self-configurable dry-running protection
• ART function (Auto Reset Test), automatic reset at programmed intervals, when the system switches off due to dry running (lack of water).
• Overcurrent protection.
• Rapid cycle alarm, when there is a lack of air in the autoclave and the system performs consecutive starts activating an alarm.
• Button for manual start.
• EMC certificate in electrical safety.
• RoHS 2 and WEEE compliant.
• Ficha Técnica
• Manual de Instruções

Características Técnicas:

Características Painel de Comandos:

• LED POWER (green)

• ALARM LED (red)
• - fixed: overcurrent
• - slow flashing: ART mode activated
• - fast flashing: dry running

• LED ON (yellow)
• - fixed: pump running
• - slow flashing: learning
• - fast flashing: warning fast cycles

• RESET button for manual reset
