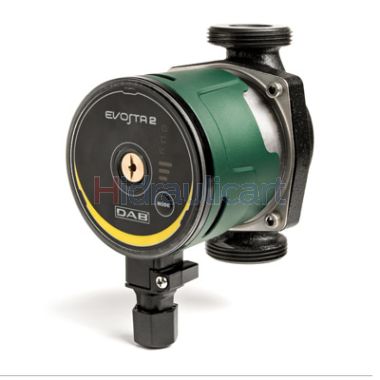

DAB Evosta2 Electronic Hot Water Circulation Pump

Product Name	Price	Delivery	Qty
DAB Circulator Electric Pump EVOSTA2 40-70/130 (1" x 1/2" Joint) Cód.DAB60186047	€225.00 €189.00
DAB Circulator Electric Pump EVOSTA2 40-70/130 (11/2" x 1" Joint) Cód.DAB60186046	€193.00 €154.30
DAB Circulator Electropump EVOSTA2 40-70/180 (11/2" x 1") Cód.DAB60185492	€193.00 €154.30

Product Description

DAB EVOSTA2 CIRCULATION PUMP Thanks to the advanced technology used, the synchronous motor and frequency converter of the new EVOSTA range guarantee high efficiency in all applications, bringing significant benefits in terms of energy savings.
For this reason, the new EVOSTA circulator complies with the European Directive 2009/125/CE ERP ( formerly EuP) and is ready to meet the Erp 2015 (EEI ≤ 0,23) .
The circulator has an electronic device that detects the changes required by the system and automatically adapts its performance, always ensuring optimum efficiency and minimum energy consumption.
The EVOSTA circulator is also ideal for replacing old three-speed circulators, as it has the same dimensions as the VA series and can cover with a single pump model. In addition, it is a product that can simplify the user's work, thanks to a sequential setting button.

FEATURES

Operating range: 0.4 to 3.3 m ³ /h with elevation up to 6.9 m ;
Fluid temperature: from -10°C to +110°C ;
Working pressure: 10 bar (1000 kPa) ;
Degree of protection: IP 44 ;
Insulation Class: F ;
Installation: with the motor shaft horizontal;
Power supply: single-phase 1x230 V ~ 50/60 Hz ;
Fluids: clean, free of solids and mineral oils, non-viscous, chemically neutral, similar to the characteristics of water ( max. glycol 30%) .

* Junções não incluídas

Specification

Model	Connections of the Pump	Connection of the Junctions*	Distance central	P1 Max. (W)	ln A	m3/h (0)	0.3	0.6	0.9	1.8	2.4	3	3.6
Model						l/min (0)	5	10	15	30	40	50	60
EVOSTA2						H(m)
40-70/130 1/2"	G 1"	1/2" Femêa	130	35	0.043 - 0.32	6.9	6.9	5.8	5.1	3.4	2.4	1.6	0.8
40-70/130 1"	G 1" ½	1" Femêa	130	35	0.043 - 0.32	6.9	6.9	5.8	5.1	3.4	2.4	1.6	0.8
40-70/180 1"	G 1" ½	1" Femêa	180	35	0.043 - 0.32	6.9	6.9	5.8	5.1	3.4	2.4	1.6	0.8
* As Junções não estão incluídas e devem ser adquiridas separadamente.

Model	L	L1	B	B1	B2	H	F	Dimensões			Volume m ³	Weight Kg
EVOSTA2	L	L1	B	B1	B2	H	F	L	B	H	Volume m ³	Weight Kg
40-70/130 1/2"	130	96	135	36	99.1	91	1"	142	99	150	0.0021	2.02
40-70/130 1"	130	96	135	36	99.1	91	1" ½	142	99	150	0.0021	1.86
40-70/180 1"	180	96	135	36	99.1	91	1" ½	192	99	150	0.0028	2.19
