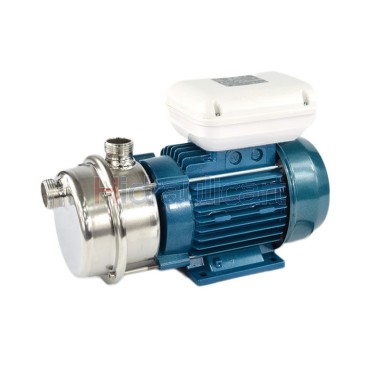

Tellarini AL Inox Transfer Pump

Product Name	Price	Delivery	Qty
Electric Pump Tellarini Inox ALM 20, 220V, 3/4" Cód.TEL700	€386.70
Electric pump Tellarini Inox ALM 25, 220V, 1" Cód.TEL701	€550.70
Electric Pump Tellarini Inox ALM 30, 220V, 1" Cód.TEL702	€670.80
Electric Pump Tellarini Inox ALM 40, 220V, 1-1/2" Cód.TEL704	€768.80
Electric pump Tellarini Inox ALM 50, 220V, 2" Cód.TEL705	€1,060.20
Electric Pump Tellarini Inox ALT 25, 400V, 1" Cód.TEL711	€550.70
Electric Pump Tellarini Inox ALT 30, 400V, 1" Cód.TEL712	€670.80
Electric Pump Tellarini Inox ALT 40, 400V, 1-1/2" Cód.TEL714	€768.80
Electric Pump Tellarini Inox ALT 50, 400V, 2" Cód.TEL715	€1,060.20

Product Description

Tellarini pumps from the ALM e ALT series are the best solution for the suction and transfer of liquids, thanks to their strong self-priming capacity and the possibility of operation even with discontinuous presence of liquid in the suction. Made entirely from AISI 316 stainless steel, it is ideal for corrosive and food liquids. Equipped with single-phase or three-phase asynchronous motors and long-life rotary switches, the ALM e ALT series are designed for demanding applications.

For each application, it is necessary to check the suitability and choose the appropriate sealants. The ALM e ALT series are ideal for use in oenology (wine, musts), food industry (oil, olive oil, brine, fruit juices, beer wort, milk), chemical industry (corrosive liquids), brewing process (beer wort , beer, washing), oil industry (olive oil, seed oil) and professional use (heavy applications, continuous over time, installation in systems and industries). The ALM e ALT series is the ideal solution

Characteristics:
Suction height 6 meters
Possibility of reversing the flow direction.
Pump body, impeller and shaft in AISI 316 stainless steel.
230V or 400V asynchronous motor, IP 44 protection. Continuous service.

Liquid Characteristics:
Max temperature 90°C
Max density 1.1 g/cm3 No particles.

Do not use with gasoline, solvents and, in general, in places where there is a risk of explosion or fire.

Specification

TELLARINI AL series
Model Single-phase	Model Three-phase	Connections	Rotation	Power	Max height @ 0 l/m	Manometric Height [m]
		Thread [in.]	[RPM]	[HP]	[m]	1	5	10	15	20	30
		Thread [in.]	[RPM]	[HP]	[m]	Q [l/m]
ALM 20	ALT 20	3/4" M	2800	0.50	18	25	19	12	7	5
ALM 25	ALT 25	1" M	1400	0.60	11	43	23	3
ALM 30	ALT 30	1" M	2800	2.00	40	80	76	67	59	46	23
ALM 40	ALT 40	11/2"M	1400	1.20	16	130	92	53	6
ALM 50		2 M	1400	2.00	27	197	164	132	100	67
	ALT 50	2 M	1400	2.50	27	197	164	132	100	67
