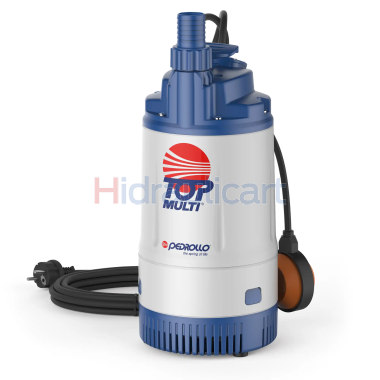

Pedrollo Top Multi Drainage Pump

VER PREÇO / COMPRAR
Pedrollo
Product Name Price Delivery Qty
TOP MULTI 1 - c/boia
Cód.PED1111017

€335.00

€288.00

TOP MULTI 2 - c/boia
Cód.PED1111012

€469.00

€403.00

Product Description

TOP Drainage Pump Submersible electric pumps for pumping clean water without abrasive particles. The construction features ensure safe and user-friendly operation, including motor cooling and double shaft sealing.
Designed for emergency drainage of small flooded areas (bedrooms, basements, garages), disposal of domestic water (dishwashers, washing machines and emptying septic tanks.
Water transfer from tanks and cisterns. Supplied with automatic float switch and output recorder.


Operation

  • Fluid: Dirty water with little charge;
  • Maximum liquid temperature: 40 ºC (+90 °C for intermittent service of up to 3 minutes ) ;
  • Maximum immersion depth: 7 m ;
  • Solids passage: 10 mm ;
  • Maximum number of starts per hour: 25 .


Construction Features

  • Pump housing: Technopolymer;
  • Pump base: Technopolymer;
  • Turbine: Noryl ;
  • Mechanical seal: Ceramic / Graphite / NBR ;
  • External Float: With built-in switch;
  • Power Cable: 5 m ;
  • Electric Motor Submersible motors with IPX8 protection rating and class F insulation. Single-phase 230 V - 50 Hz with permanent capacitor. For continuous operation the electric pump must work completely submerged;
  • Connections Ø TOP 1: 25 mm ;
  • Connections Ø TOP 2 e 3 - 35mm .

Specification

Model Power m 3 /h (0) 0.6 1.2 1.8 2.4 3 3.6 4.2 4.5 4.8 5.4 6 6.6 7.2
l/min (0) 10 20 30 40 50 60 70 75 80 90 100 110 120
kW HP H
TOP MULTI 1 0.37 0.50 26 25 23.3 21 18.3 15 11.6 8 6 - - - - -
TOP MULTI 2 0.55 0.75 40 38.5 36 32.5 28 23 17.7 12 9 6 - - - -
MODEL
Exit Number
of Internships
Dimensions mm Kg
DN the b h h1 d and p
TOP MULTI 1 1¼" 2 170 192 295 315 25 Adjustable 350 350 6.9
TOP MULTI 2 1 ¼ " 3 178 - 380 - 35 Adjustable 500 500 9.3

Documents

For more information, see the Technical Data Sheet.
