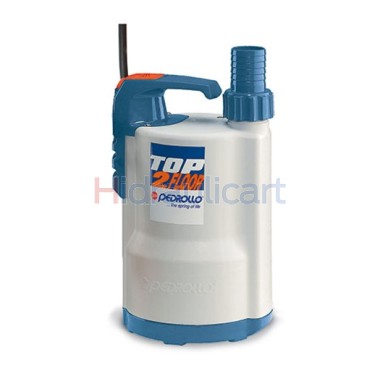

Pedrollo Top Floor Drainage Pump

VER PREÇO / COMPRAR

The TOP-FLOOR series is suitable for drainage of clean water without abrasive particles.

Pedrollo
Product Name Price Delivery Qty
Pedrollo Top Floor Electric Pump1
Cód.PED42005003

€244.00

€193.00

Electrobomba Pedrollo Top Floor2
Cód.PED1111013

€251.00

€216.00

Product Description

Aplicações:

The TOP-FLOOR series is suitable for draining clean water without abrasive particles. Due to its ability to suck up water up to 2 mm from the bottom, it is suitable for domestic use, in emergency situations, for small flooded environments and in all those applications where maximum drainage capacity is required.



Operation:

  • Fluid: Clean water;
  • Maximum liquid temperature: 40 ºC ;
  • Maximum immersion depth: 7 m ;
  • Passage of solids: 2 mm ;
  • Maximum number of starts per hour: 25 .


Construction Features

  • Pump body: Technopolymer;
  • Pump base: Technopolymer;
  • Turbine: Technopolymer;
  • Mechanical seal: Ceramic / Graphite / NBR ;
  • External Float: With built-in switch;
  • Power Cable: 5 m ;
  • Electric Motor Submersible motors with IPX8 protection rating and class F insulation. Single-phase 230 V - 50 Hz with permanent capacitor. For continuous operation the electric pump must work completely submerged;
  • Connections Ø Output: 25mm .

Specification

Model Power m3 /h (0) 1.2 2.4 3.6 4.8 6 7.2 7.8 9
l/min (0) 20 40 60 80 100 120 140 160
kW HP H
TOP 1 - FLOOR 0.25 0.33 6.5 6 5.5 4.8 4 3 2 - -
TOP 2 - FLOOR 0.37 0.5 8.5 8 7.4 6.7 6 5 4 3.5 2.4

MODEL
Exit Dimensions mm Minimum Level Kg
DN the h h1
TOP 1 - FLOOR 1¼" 152 257 237 2 mm 4.3
TOP 2 - FLOOR 1¼" 152 257 237 2 mm 5

Documents

For more information, see the Technical Data Sheet.
