Product Description
In drainage installations for domestic salt water
Applications:

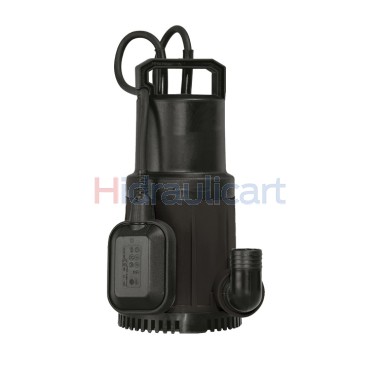

The NOVA SALT series is a pump specifically built for use in domestic salt water drainage installations.
It is manufactured with oxidation-proof and anti-corrosion materials.
Operation:
Fluid: Clean domestic salt water, dirty water without fibers or suspended solids.
Maximum liquid temperature: 35 ºC
Maximum immersion depth: 7 m
Solids passage: 5 mm
Maximum number of starts per hour: 25
Constructive Features
Pump body: Resistant technopolymer
Engine cover: AISI 316 stainless steel
Motor shaft: AISI 316 stainless steel
Pump base: Resistant technopolymer
Turbine: Resistant technopolymer
Sealing: NBR
Rigid Float: built-in
Power Cable: 10 m tinned
Electric Motor Submersible motors with IP68 degree of protection and class F insulation. Single-phase 230 V - 50 Hz with permanent capacitor.
Connections Ø Output: 1¼"
Specification
Documents
For more information, see the Technical Data Sheet .
